PHOENIX CONTACT SPT 16/ 1-V-10,0 VT SPT 16/ 1-V-10,0 VT 1712551 PHOENIX CONTACT PCB terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

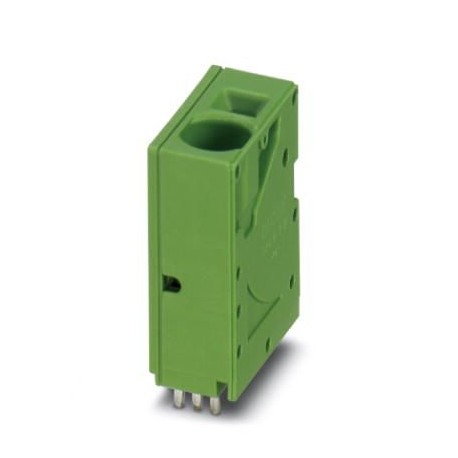

SPT 16/ 1-V-10,0 VT 1712551 PHOENIX CONTACT PCB terminal block

SPT 16/ 1-V-10,0 VT

1712551

PHOENIX CONTACT

50 Pcs.

PCB terminal block Terminal for printed circuit board, nominal current: 76 A, nominal voltage (III/2): 1000 V, nominal section: 16 mm², number of potentials: 1, number of rows: 1, number of poles per row: 1, family of articles: SPT 16/.. -V, pitch: 10 mm, connection type: Push-in spring connection, mounting: Wave soldering, conductor/printed circuit board connection direction: 90 °, color: violet, Pin arrangement: Linear pin arrangement, Pin length [P]: 4.1 mm, number of solder pins per potential: 6, packaging type: boxed

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1712551
Packing unit50 pc
Minimum order quantity50 pc
NoteMade to Order (non-returnable)
GTIN4055626364261
Weight per Piece (excluding packing)9.540 g
Custom tariff number85369010
Country of originBG (Bulgaria)

Dimensions

Length [ l ]24.7 mm
Pitch10 mm
Width [ w ]11.8 mm
Height31.3 mm
Height [ h ]35.4 mm
Solder pin [P]4.1 mm
Pin spacing15 mm
Hole diameter1.7 mm

General

Range of articlesSPT 16/..-V
Insulating material groupI
Rated voltage (III/2)1000 V
Nominal current IN76 A
Nominal cross section16 mm²
Solder pin surface
Flammability rating according to UL 94V0
Number of positions1

Standards and Regulations

Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 1712551 Connectors (EC002643)
Feature Name Feature Value
Height (EF000040) 35.4 mm
Number of electrical connections (EF008252) 1
Number of levels (EF002659) 1
Modular spacing connections (EF006827) 10 mm
Rated current In (EF008250) 76 A
Rated voltage (EF000228) 1000 V
Rated surge voltage (EF002993) 8 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Connection type conductor (EF006821) Spring clamp connection
Connectable conductor cross section solid-core (EF007337) 0.75 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 0.75 mm²
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.75 mm²
Connectable conductor cross section multi-wired (EF007343) 16 mm²
Connection type PCB (EF006822) Soldering connection
Material connection surface (EF006826) Tin
Diameter connection pin (EF006823) 1.7 mm
Length pin (EF006825) 4.1 mm
Material insulation body (EF007543) Other
Housing colour (EF000136) Other
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of PCB fastening (EF008226) Connecting contact
Type of fastening (EF002442) Solder
Type of banding (EF007011) Carton (for SMD)

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
