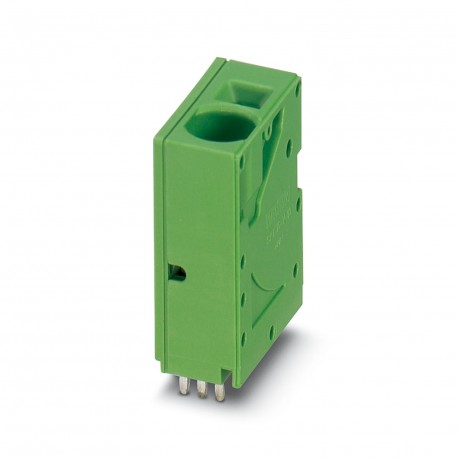

PHOENIX CONTACT SPT 16/ 1-V-10,0 BN SPT 16/ 1-V-10,0 BN 1829263 PHOENIX CONTACT PCB terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SPT 16/ 1-V-10,0 BN 1829263 PHOENIX CONTACT PCB terminal block

SPT 16/ 1-V-10,0 BN

1829263

PHOENIX CONTACT

50 Pcs.

PCB terminal block Terminal for printed circuit board, nominal current: 76 A, nominal voltage (III/2): 1000 V, nominal section: 16 mm², number of potentials: 1, number of rows: 1, number of poles per row: 1, family of articles: SPT 16/.. -V, pitch: 10 mm, connection type: Push-in spring connection, mounting: Wave soldering, conductor connection direction/printed circuit board: 90 °, color: brown, Pin arrangement: Linear pin arrangement, Pin length [P]: 4.1 mm, number of solder pins per potential: 6, packaging type: boxed PCB terminal, rated current: 76 A, reference voltage (III/2): 1000 V, nominal cross-section: 16 mm2, number of potentials: 1, number of rows: 1, number of poles per row: 1, item range: SPT 16/.. -V, pitch: 10 mm, connection type: Push-in spring connection, mounting: Wave soldering, conductor/PCB plugging direction: 90 °, colour: brown, Pin layout: Linear, Spindle length [P]: 4.1 mm, number of pins per potential: 6, packaging type: packed in carton

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1829263
Packing unit1
GTIN4046356879477
Custom tariff number85369010

Dimensions

Length [ l ]29 mm
Pitch10 mm
Width [ w ]11.8 mm
Height31.3 mm
Height [ h ]35.4 mm
Solder pin [P]4.1 mm
Pin spacing15 mm
Hole diameter1.7 mm

General

Range of articlesSPT 16/..-V
Rated surge voltage (III/3)8 kV
Rated surge voltage (III/2)8 kV
Rated surge voltage (II/2)6 kV
Rated voltage (III/3)1000 V
Rated voltage (III/2)1000 V
Rated voltage (II/2)1000 V
Connection in acc. with standardEN-VDE
Nominal current IN76 A
Nominal cross section16 mm²
Solder pin surface
Stripping length18 mm
Number of positions1

Connection data

Conductor cross section AWG min.20
Conductor cross section AWG max.4
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min.0.75 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max.4 mm²

Standards and Regulations

Connection in acc. with standardEN-VDE

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
