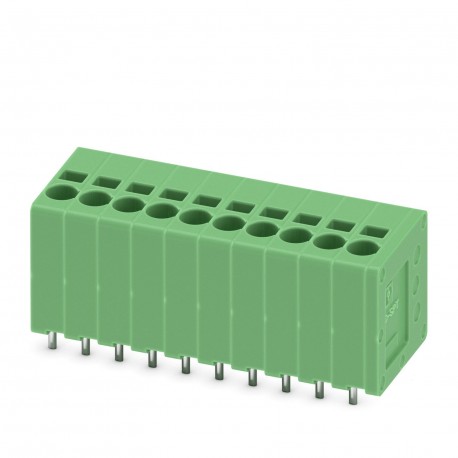

PHOENIX CONTACT SPT 1,5/34-V-3,5BD:EXT-GND QSO SPT 1,5/34-V-3,5BD:EXT-GND QSO 1703110 PHOENIX CONTACT PCB terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SPT 1,5/34-V-3,5BD:EXT-GND QSO 1703110 PHOENIX CONTACT PCB terminal block

SPT 1,5/34-V-3,5BD:EXT-GND QSO

1703110

PHOENIX CONTACT

50 Pcs.

PCB terminal block Terminal block for printed circuit board, nominal current: 17.5 A, dimensioning voltage (III/2): 200 V, nominal section: 1.5 mm², Number of potentials: 34, Number of rows: 1, Number of poles per row: 34, family of articles: SPT 1.5/.. -V, pitch: 3.5mm, connection type: Push-in spring connection, mounting: Wave soldering, conductor/printed circuit board connection direction: 90°, color: green, Pin arrangement: Double linear pin arrangement, Pin length [P]: 2.5mm, packaging type: boxed Printed circuit board terminal, rated current: 17.5 A, rated voltage (III/2): 200 V, rated cross-section: 1.5 mm2, number of potentials: 34, number of rows: 1, number of poles per row: 34, item family: SPT 1.5/.. -V, pitch: 3.5 mm, connection type: Push-in spring connection, mounting: Wave soldering, conductor connection direction/printed circuit board: 90 °, Pin arrangement: Double linear pin arrangement, Pin length [P]: 2.5 mm, number of solder pins per potential: 2, packaging type: boxed

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1703110
Packing unit1
GTIN4046356637015
Custom tariff number85369010

Item properties

Brief article descriptionPCB terminal block
Range of articlesSPT 1,5/..-V
Pitch3.5 mm
Number of positions34
Connection methodPush-in spring connection
Mounting typeWave soldering
Pin layoutLinear double pinning
Number of levels1
Number of connections34
Number of potentials34

Electrical parameters

Rated current17.5 A
Rated insulation voltage (III/2)200 V
Rated surge voltage (III/2)2.5 kV

Connection capacity

Conductor cross section solid0.2 mm² ... 1.5 mm²
Conductor cross section flexible0.2 mm² ... 1.5 mm²
Conductor cross section AWG / kcmil24 ... 16
Conductor cross section flexible, with ferrule without plastic sleeve0.25 mm² ... 1.5 mm² (Stripping length 8 mm)
Conductor cross section, flexible, with ferrule, with plastic sleeve0.25 mm² ... 0.75 mm² (Stripping length 8 mm)
Stripping length10 mm

Material data - contact

NoteWEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Contact materialCu alloy
Surface characteristicshot-dip tin-plated
Metal surface terminal point (top layer)Tin (4 - 8 µm Sn)
Metal surface soldering area (top layer)Tin (4 - 8 µm Sn)

Material data - housing

Insulating materialPA
Insulating material groupI
CTI according to IEC 60112600
Flammability rating according to UL 94V0
Glow wire flammability index GWFI according to EN 60695-2-12850
Glow wire ignition temperature GWIT according to EN 60695-2-13775
Temperature for the ball pressure test according to EN 60695-10-2125 °C

Dimensions for the product

Dimensional drawing
CaptionSchematic representation – for additional information, see product range drawing in the Download Center
Length [ l ]13.5 mm
Width [ w ]120.4 mm
Height [ h ]16.9 mm
Pitch3.5 mm
Height (without solder pin)14.4 mm
Solder pin [P]2.5 mm
Pin spacing8.2 mm
Pin dimensions0.8 x 0.8 mm
Dimension a115.5 mm

Dimensions for PCB design

Hole diameter1.1 mm
Pin spacing8.2 mm

Packaging information

Type of packagingpacked in cardboard
Pieces per package50
Denomination packing unitsPcs.

Ambient conditions

Ambient temperature (storage/transport)-40 °C ... 70 °C
Ambient temperature (assembly)-5 °C ... 100 °C
Ambient temperature (operation)-40 °C

Termination and connection method

Test for conductor damage and slackeningIEC 60998-2-2:2002-12
Test passed

Pull-out test

Conductor cross section / conductor type / tensile force0.2 mm² / solid / > 10 N
0.2 mm² / flexible / > 10 N
1.5 mm² / solid / > 40 N
1.5 mm² / flexible / > 40 N

Electrical tests

Rated current17.5 A
Rated insulation voltage (III/2)200 V
Rated surge voltage (III/2)2.5 kV

Air clearances and creepage distances

Insulating material groupI
Voltage160 V
Rated insulation voltage (III/3)160 V
Rated insulation voltage (III/2)200 V
Rated insulation voltage (II/2)400 V
Rated surge voltage (III/3)2.5 kV
Rated surge voltage (III/2)2.5 kV
Rated surge voltage (II/2)2.5 kV

Standards and Regulations

Connection in acc. with standardEN-VDE

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
