PHOENIX CONTACT CCV 2,5/ 3-GSF-5,08 P26 THR CCV 2,5/ 3-GSF-5,08 P26 THR 1834232 PHOENIX CONTACT Printed-circuit board connector View larger

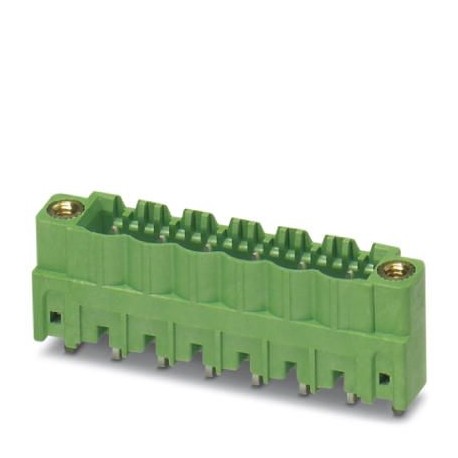

Images are for illustrative purposes only. Please refer to data sheet for details

CCV 2,5/ 3-GSF-5,08 P26 THR 1834232 PHOENIX CONTACT Printed-circuit board connector

CCV 2,5/ 3-GSF-5,08 P26 THR

1834232

PHOENIX CONTACT

50 Pcs.

Printed-circuit board connector Printed circuit board base case, nominal section: 2.5 mm², color: black, nominal current: 12 A, nominal voltage (III/2): 320 V, contact surface: Tin, contact type: Male, number of rows: 1, number of poles: 3, family of articles: CCV 2.5/.. -GSF, pitch: 5.08 mm, mounting: Solder THR, pin arrangement: Linear pin arrangement, pin length [P]: 2.6 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2.5, Plug-in face orientation: Standard, locking: Screw lock, fixing type: Overhead clamping (thread), packaging type: boxed

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1834232
Packing unit1
GTIN4046356961950
Custom tariff number85366930

Dimensions

Length [ l ]8.6 mm
Pitch5.08 mm
Dimension a10.16 mm
Height [ h ]12 mm
Height13 mm
Length of the solder pin2.6 mm
Pin dimensions1 x 1 mm
Length8.6 mm

General

Range of articlesCCV 2,5/..-GSF
Rated voltage (III/3)250 V
Connection in acc. with standardEN-VDE
Nominal current IN12 A
Maximum load current12 A (per position)
Colorblack
Number of positions3

Standards and Regulations

Connection in acc. with standardEN-VDE

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 1834232 Connectors (EC002637)
Feature Name Feature Value
Connector model (EF007495) Fixed connector
Contact type (EF001587) Pin
Number of plug-in contact rows (EF006935) 1
Modular spacing contacts (EF007326) 5.08 mm
Modular spacing connections (EF006827) 5.08 mm
Rated current In (EF008250) 12 A
Rated voltage (EF000228) 320 V
Rated surge voltage (EF002993) 4 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Material of contact surface (EF004020) Tin
Type of electric connection (EF003961) Other
Diameter connection pin (EF006823) 1.6 mm
Length pin (EF006825) 2.6 mm
Material insulation body (EF007543) Other
Housing colour (EF000136) Black
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of fastening (EF002442) Other
Type of banding (EF007011) Carton (for SMD)

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
