View larger
Images are for illustrative purposes only. Please refer to data sheet for details

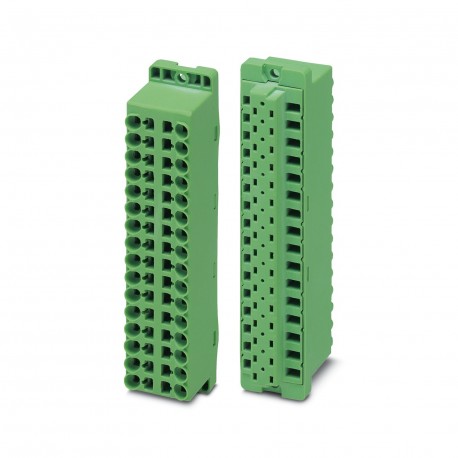

FRONT-ZFL 1,5/D32 2201632 PHOENIX CONTACT Socket strip
FRONT-ZFL 1,5/D32
2201632
PHOENIX CONTACT
10 Pcs.
Socket strip
19" female connector, color: green, contact surface: Tin, number of poles: 32, item family: FRONT-ZFL 1.5, pitch: 5.08 mm, packaging type: packed in box
19" socket strip, color: green, number of positions: 32, product range: FRONT-ZFL 1,5, pitch: 5.08 mm, type of packaging: packed in cardboard
Connectors > Printed circuit board terminal
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | 19" socket strip |
| Product family | FRONT-ZFL 1,5 |
| Type | D |
| Number of positions | 32 |
| Pitch | 5.08 mm |
| Data management status | |
| Article revision | 00 |
Electrical properties
| Rated surge voltage (II/2) | 4 kV |
Connection data
| Connection method | Spring-cage connection |
| Stripping length | 11 mm |
Dimensions
| Dimensional drawing |  |
| Width | 94.7 mm |
| Height | 20.3 mm |
| Length | 28.5 mm |
| Pitch | 5.08 mm |
Material specifications
| Color (Housing) | green (RAL 6021) |
| Flammability rating according to UL 94 | V0 |
| Insulating material group | I |
| Insulating material | PBT |
| Contact surface | Tin Sn |
Standards and regulations
| Connection in acc. with standard | EN-VDE |
Packaging specifications
| Type of packaging | packed in cardboard |
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 20.3 mm |
| Modular spacing connections (EF006827) | 5.08 mm |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 2 |
| Connection type PCB (EF006822) | Soldering connection |
| Housing colour (EF000136) | Green |
| Type of banding (EF007011) | Carton (for SMD) |
