View larger
Images are for illustrative purposes only. Please refer to data sheet for details

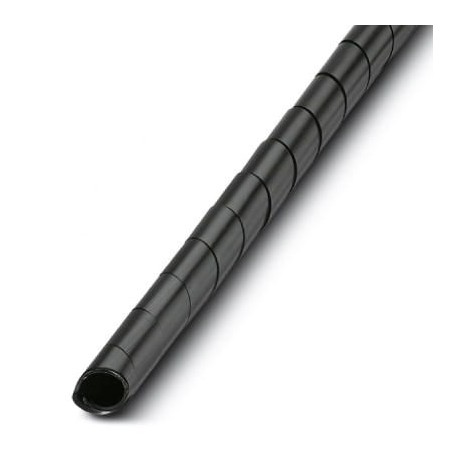

WG-S HF 70 BK 3241118 PHOENIX CONTACT Spiral tube
WG-S HF 70 BK
3241118
PHOENIX CONTACT
25 m.
Spiral tube
Spiral hose for easy bundling and guiding lines and conductors, offers protection against easy mechanical stress
Cables > Cable bundle hose
CABINET add-on
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 3241118 |
|---|---|
| Packing unit | 25 M |
| Minimum order quantity | 25 M |
| Catalog page | Page 645 (C-3-2017) |
| GTIN | 4046356717472 |
| Weight per Piece (excluding packing) | 26.500 g |
| Custom tariff number | 39269097 |
| Country of origin | PL (Poland) |
Ambient conditions
| Ambient temperature (operation) | -50 °C ... 85 °C |
|---|---|
| Ambient temperature (assembly) | -20 °C ... 60 °C |
General
| Color | black |
|---|---|
| Type | Continuous strip |
| Components | free from silicone and halogen |
| Flammability rating according to UL 94 | HB |
| Material | PE |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027140602eCl@ss 4.127140602eCl@ss 5.027140602eCl@ss 5.127140600eCl@ss 6.027400700eCl@ss 7.027430302eCl@ss 8.027430302eCl@ss 9.027430302
| Feature Name | Feature Value |
|---|---|
| Nominal diameter (EF005114) | 10 mm |
| Material (EF002169) | Plastic |
| Colour (EF000007) | Black |
| Operating temperature (EF002393) | -50 °C |
| Fire resistant properties (EF007705) | According to UL94 HB |
| Halogen free (EF000025) | Yes |
| Wall thickness (EF000229) | 1 mm |
| Filament width (EF008117) | 70 mm |
| Bundle diameter (EF007719) | 13 mm |
