View larger
Images are for illustrative purposes only. Please refer to data sheet for details

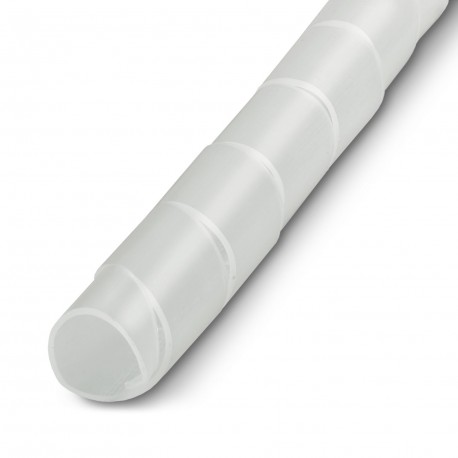

WG-S HF 150 3241123 PHOENIX CONTACT Spiral tube
WG-S HF 150
3241123
PHOENIX CONTACT
20 m.
Spiral tube
Spiral hose for easy bundling and guiding lines and conductors, offers protection against easy mechanical stress
Cables > Cable bundle hose
CABINET add-on
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Cable tie |
| Type | Continuous strip |
Dimensions
| Width | 150 mm |
| Length | 20 m |
| Internal dimensions | |
| Internal diameter | 22.2 mm |
Material specifications
| Color | transparent |
| Material | PE |
| Flammability rating according to UL 94 | HB |
| Components | free from silicone and halogen |
Cable/line
| External cable diameter | 25 mm ... 150 mm |
Environmental and real-life conditions
| Ambient conditions | |
| Ambient temperature (operation) | -50 °C ... 85 °C |
| Ambient temperature (assembly) | -20 °C ... 60 °C |
Mounting
| Mounting type | Twist |
| Feature Name | Feature Value |
|---|---|
| Nominal diameter (EF005114) | 22.2 mm |
| Material (EF002169) | Plastic |
| Colour (EF000007) | Other |
| Operating temperature (EF002393) | -50 °C |
| Fire resistant properties (EF007705) | According to UL94 HB |
| Halogen free (EF000025) | Yes |
| Wall thickness (EF000229) | 1.4 mm |
| Filament width (EF008117) | 150 mm |
| Bundle diameter (EF007719) | 25 mm |
