View larger
Images are for illustrative purposes only. Please refer to data sheet for details

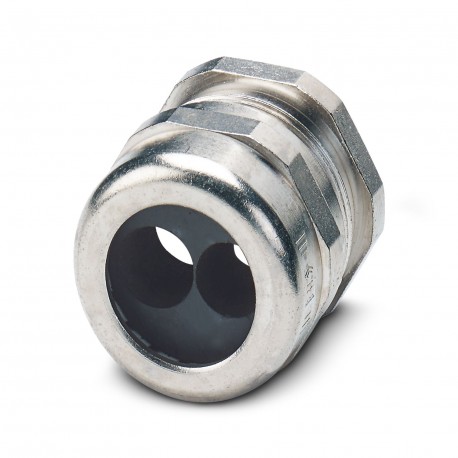

HC-M-KV-M25(1X10/1X11) 1580228 PHOENIX CONTACT Cable gland
HC-M-KV-M25(1X10/1X11)
1580228
PHOENIX CONTACT
1 Pcs.
Cable gland
Special M25 cable gland, nickel-plated brass, joint with 10 mm and 11 mm drill
Cables > Cable gland
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1580228 |
|---|---|
| Packing unit | 10 pc |
| Catalog page | Page 674 (C-2-2017) |
| GTIN | 4046356178570 |
| Weight per Piece (excluding packing) | 77.410 g |
| Custom tariff number | 74199990 |
| Country of origin | DE (Germany) |
Dimensions
| Length | 37 mm |
|---|---|
| Wrench size, union nut | 34 mm |
| Wrench size, support | 34 mm |
| Hexagon angular dimension | 36 mm |
| Length of the connecting thread | 7 mm |
| Feed-through hole diameter | 25.1 mm ... 25.2 mm |
| External cable diameter | 9.5 mm ... 10 mm (Cable 1) |
| 10.5 mm ... 11 mm (Cable 2) |
General
| No. of conductors | 2 |
|---|---|
| Cable gland material | Nickel-plated brass |
| Shielded | no |
| Thread type connection side | M25 x 1.5 |
| Thread type on connection side | M25 |
| Color | silver |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
