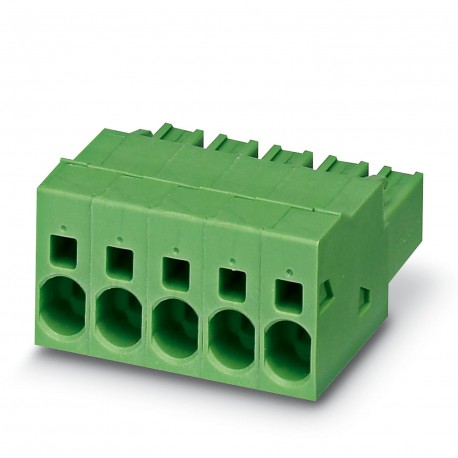

SPC 5/ 3-ST-7,62 GY 1714136 PHOENIX CONTACT Printed-circuit board connector
SPC 5/ 3-ST-7,62 GY
1714136
PHOENIX CONTACT
100 Pcs.
Printed-circuit board connector
Connector for printed circuit board, nominal section: 6 mm², color: gray, nominal current: 41 A, nominal voltage (III/2): 1000 V, contact surface: Tin, contact type: Female, number of potentials: 3, number of rows: 1, number of poles: 3, number of connections: 3, family of items: SPC 5/.. -ST, pitch: 7.62 mm, connection type: Push-in spring connection, driver/printed circuit board connection direction: 0°, clamping hook: - Clamping hook, plug-in system: COMBICON PC 5, locking: without, fixing type: without, packaging type: boxed
Cables > Cable connector
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General
| Range of articles | SPC 5/..-ST |
|---|---|
| Number of positions | 3 |
| Connection method | Push-in spring connection |
| Insulating material group | I |
| Rated voltage (III/2) | 1000 V |
| Nominal current IN | 41 A |
| Nominal cross section | 6 mm² |
| Flammability rating according to UL 94 | V0 |
Specifications for ferrules
| Recommended crimping pliers | 1212034 CRIMPFOX 6 |
|---|---|
| Ferrules without insulating collar, according to DIN 46228‑1 | Cross section: 0.5 mm²; Length: 10 mm ... 15 mm |
| Cross section: 0.75 mm²; Length: 10 mm ... 15 mm | |
| Cross section: 1 mm²; Length: 10 mm ... 15 mm | |
| Cross section: 1.5 mm²; Length: 10 mm ... 15 mm | |
| Cross section: 2.5 mm²; Length: 12 mm ... 15 mm | |
| Cross section: 4 mm²; Length: 12 mm ... 15 mm |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
