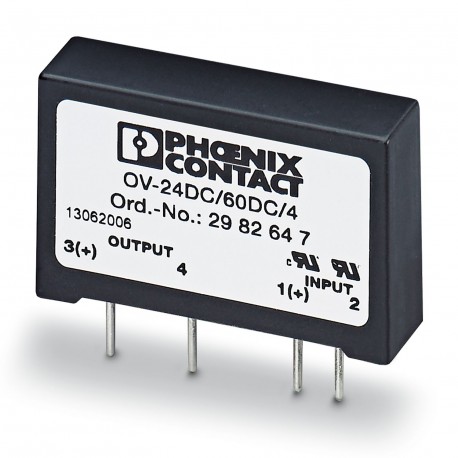

OV-24DC/ 60DC/4 2982647 PHOENIX CONTACT Semi-conductor relay

OV-24DC/ 60DC/4

2982647

PHOENIX CONTACT

10 Pcs.

Semi-conductor relay Solid-state relay, for signal amplification and galvanic separation of the control and load circuits, pluggable into plug-in sockets for soldering SIM-AMS, or with card connection for direct mounting on the printed circuit board, input: 4.25-32 V DC, output: 1-60 V DC/4 A Solid state relay for signal amplification and galvanic separation between the control circuit and the field, pluggable on the SIM-AMS socket or with card connection for direct PCB mounting, input: 4.25-32 V DC, output: 1-60 V DC/4 A

Automation > Optocoupler
Industrial Relays

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2982647
Packing unit10 pc
Catalog pagePage 559 (C-7-2013)
GTIN4046356131971
Weight per Piece (excluding packing)24.000 g
Custom tariff number85362010
Country of originCN (China)

Dimensions

Width10.5 mm
Height43 mm
Depth25.4 mm

Ambient conditions

Ambient temperature (operation)-20 °C ... 80 °C
Ambient temperature (storage/transport)-20 °C ... 80 °C

Input data

Nominal input voltage UN24 V DC
Input voltage range4.25 V DC ... 32 V DC
Switching threshold "0" signal, voltage< 1 V DC
Switching threshold "1" signal voltage> 3.3 V DC
Typical input current at UN15 mA
Typical response time< 100 µs
Typical turn-off time< 250 µs
Transmission frequency100 Hz

Output data

Output voltage range1 V DC ... 60 V DC
Limiting continuous current4 A (see derating curve)
Min. load current1 mA
Leakage current100 µA
Surge current25 A (tp= 1 s)
Voltage drop at max. limiting continuous current0.5 V
Output circuit2-conductor
Type of protectionReverse polarity protection
Protective circuit/componentPolarity protection diode

General

Test voltage input/output4 kV (50 Hz, 1 min.)
Mounting positionany
Assembly instructionsCan be aligned with > 20 mm spacing
Operating mode100% operating factor
Standards/regulationsEN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 55011

Standards and Regulations

Connection in acc. with standardCUL
Standards/regulationsEN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 55011
InsulationBasic insulation

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2982647 Relays (EC001504)
Feature Name Feature Value
Input voltage (EF003840) 4.25 V
Type of voltage (input voltage) (EF003033) DC
Output voltage (EF003933) 1 V
Rated operation current Ie (EF001443) 4 A
Type of digital output (EF003601) Electronic
With LED indication (EF005950) No

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
