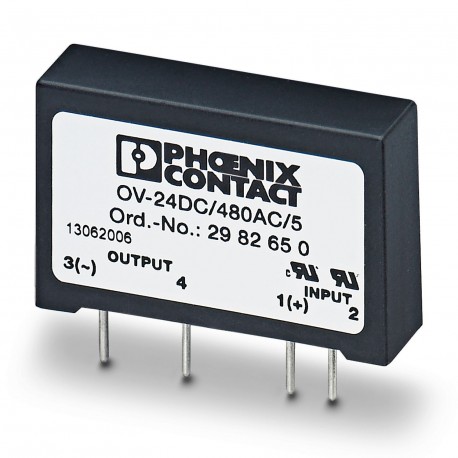

OV-24DC/480AC/5 2982650 PHOENIX CONTACT Semi-conductor relay
OV-24DC/480AC/5
2982650
PHOENIX CONTACT
10 Pcs.
Semi-conductor relay
Solid-state relay, for signal amplification and galvanic separation of control and load circuits, pluggable into plug-in sockets for soldering SIM-AMS, or with card connection for direct mounting on the printed circuit board, input: 4-32 V DC, output: 12-530 V AC/5 A
Solid-state relay, for signal amplification and isolation of the control and load circuits, can be plugged in the solderable plug-in bases SIM-AMS or with PCB connection for mounting directly onto the PCB, input: 4-32 V DC, output: 12-530 V AC/ 5 A
Automation > Optocoupler
Industrial Relays
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Single solid-state relay |
| Operating mode | 100% operating factor |
| Data management status | |
| Date of last data management | 17.05.2024 |
| Article revision | 00 |
| Insulation characteristics | |
| Insulation | Basic insulation |
Electrical properties
| Test voltage (Input/output) | 4 kV (50 Hz, 1 min., input/output) |
Input data
| Nominal input voltage UN | 24 V DC |
| Input voltage range | 4 V DC ... 32 V DC |
| Switching threshold "0" signal, voltage | < 1.2 V DC |
| Switching threshold "1" signal voltage | > 3.5 V DC |
| Typical input current at UN | 10 mA |
| Typical response time | ms (maximum ½ periods) |
| Typical turn-off time | ms (maximum ½ periods) |
| Transmission frequency | 25 Hz |
Output data
| Design of digital output | electronic |
| Output voltage range | 12 V AC ... 530 V AC (45/65 Hz) |
| Limiting continuous current | 5 A (see derating curve) |
| Min. load current | 20 mA |
| Leakage current | < 1 mA |
| Surge current | 80 A (tp = 20 ms) |
| Phase angle cos phi min | 0.5 |
| Max. load value | 50 A2s |
| Peak offstate voltage | 1000 V (Periodic peak reverse voltage) |
| Voltage drop at max. limiting continuous current | 1.2 V |
| Output circuit | 2-conductor |
Dimensions
| Dimensional drawing |  |
| Width | 10.5 mm |
| Height | 43 mm |
| Depth | 25.4 mm |
Material specifications
| Color | black (RAL 9005) |
Environmental and real-life conditions
| Ambient conditions | |
| Ambient temperature (operation) | -20 °C ... 70 °C |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Approvals
| UKCA | |
| Certificate | UKCA-compliant |
Standards and regulations
| Standards/regulations | EN 61000-4-2 |
| EN 61000-4-3 | |
| EN 61000-4-4 | |
| EN 61000-4-5 | |
| EN 61000-4-6 | |
| EN 55011 |
Mounting
| Assembly note | Can be aligned with > 20 mm spacing |
| Mounting position | any |
| Feature Name | Feature Value |
|---|---|
| Input voltage (EF003840) | 4 V |
| Type of voltage (input voltage) (EF003033) | DC |
| Output voltage (EF003933) | 12 V |
| Rated operation current Ie (EF001443) | 5 A |
| Type of digital output (EF003601) | Electronic |
| With LED indication (EF005950) | No |
