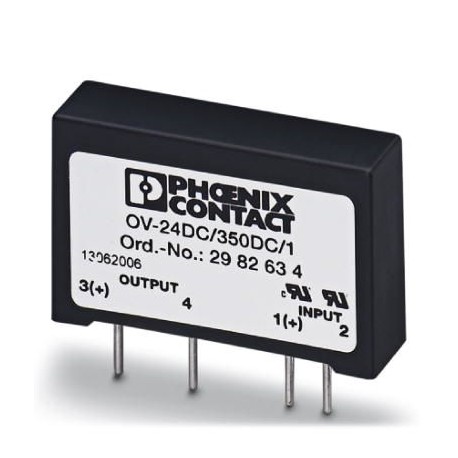

OV-24DC/350DC/1 2982634 PHOENIX CONTACT Semi-conductor relay
OV-24DC/350DC/1
2982634
PHOENIX CONTACT
10 Pcs.
Semi-conductor relay
Solid-state relay, for signal amplification and galvanic separation of the control and load circuits, pluggable into plug-in sockets for soldering SIM-AMS, or with card connection for direct mounting on the printed circuit board, input: 4.25-32 V DC, output: 1-350 V DC/1 A
Automation > Optocoupler
Industrial Relays
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2982634 |
|---|---|
| Packing unit | 10 pc |
| Catalog page | Page 558 (C-7-2013) |
| GTIN | 4046356131988 |
| Weight per Piece (excluding packing) | 23.000 g |
| Custom tariff number | 85362010 |
| Country of origin | CN (China) |
Ambient conditions
| Ambient temperature (operation) | -20 °C ... 80 °C |
|---|---|
| Ambient temperature (storage/transport) | -20 °C ... 80 °C |
Input data
| Nominal input voltage UN | 24 V DC |
|---|---|
| Input voltage range | 4.25 V DC ... 32 V DC |
| Switching threshold "0" signal, voltage | < 1 V DC |
| Switching threshold "1" signal voltage | > 3.3 V DC |
| Typical input current at UN | 15 mA |
| Typical response time | < 100 µs |
| Typical turn-off time | < 250 µs |
| Transmission frequency | 100 Hz |
Output data
| Output voltage range | 1 V DC ... 350 V DC |
|---|---|
| Limiting continuous current | 1 A (see derating curve) |
| Min. load current | 1 mA |
| Leakage current | 100 µA |
| Surge current | 20 A (tp= 1 s) |
| Voltage drop at max. limiting continuous current | 0.5 V |
| Output circuit | 2-conductor |
| Type of protection | Reverse polarity protection |
| Protective circuit/component | Polarity protection diode |
General
| Test voltage input/output | 4 kV (50 Hz, 1 min.) |
|---|---|
| Mounting position | any |
| Assembly instructions | Can be aligned with > 9 mm spacing |
| Operating mode | 100% operating factor |
| Standards/regulations | EN 61000-4-2 |
| EN 61000-4-3 | |
| EN 61000-4-4 | |
| EN 55011 |
Standards and Regulations
| Connection in acc. with standard | CUL |
|---|---|
| Standards/regulations | EN 61000-4-2 |
| EN 61000-4-3 | |
| EN 61000-4-4 | |
| EN 55011 | |
| Insulation | Basic insulation |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 5.027371001eCl@ss 5.127371000eCl@ss 6.027371600eCl@ss 7.027371604eCl@ss 8.027371604eCl@ss 9.027371604
| Feature Name | Feature Value |
|---|---|
| Input voltage (EF003840) | 4.25 V |
| Type of voltage (input voltage) (EF003033) | DC |
| Output voltage (EF003933) | 1 V |
| Rated operation current Ie (EF001443) | 1 A |
| Type of digital output (EF003601) | Electronic |
| With LED indication (EF005950) | No |
