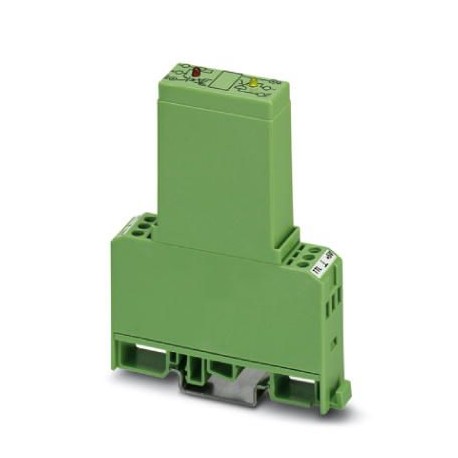

EMG 17-OV-TTL/ 24DC/2 2943259 PHOENIX CONTACT Solid-state relay module
EMG 17-OV-TTL/ 24DC/2
2943259
PHOENIX CONTACT
1 Pcs.
Solid-state relay module
Solid-state power relay, with indicator light and protection circuit in input and output circuit, input: TTL 5 V DC, output: short-circuit resistance, 24 V DC/max. 2 A
Automation > Optocoupler
Industrial Relays
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2943259 |
|---|---|
| Packing unit | 10 pc |
| Catalog page | Page 141 (IF-2011) |
| GTIN | 4017918107543 |
| Weight per Piece (excluding packing) | 56.600 g |
| Custom tariff number | 85364190 |
| Country of origin | DE (Germany) |
Note
| Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
|---|
Ambient conditions
| Ambient temperature (operation) | -20 °C ... 60 °C |
|---|---|
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
| Degree of protection | IP20 |
Input data
| Nominal input voltage UN | 5 V (TTL) |
|---|---|
| Input voltage range in reference to UN | 0.8 ... 1.2 |
| Input voltage range | 4 V DC ... 6 V DC |
| Switching threshold "0" signal, voltage | 0.8 V (TTL) |
| Switching threshold "1" signal voltage | 2 V (TTL) |
| Typical input current at UN | 2.6 mA |
| Typical response time | 170 µs |
| Typical turn-off time | 190 µs |
| Status display | Yellow LED |
| Type of protection | Reverse polarity protection |
| Surge protection | |
| Free running | |
| Protective circuit/component | Polarity protection diode |
| Suppressor diode | |
| Damping diode | |
| Auxiliary voltage TTL input | 5 V DC ±20 % |
| Auxiliary current TTL input | 2.8 mA |
| Transmission frequency | 1000 Hz |
Output data
| Output voltage range | 10 V DC ... 30 V DC |
|---|---|
| Limiting continuous current | 2 A (see derating curve) |
| Leakage current | 150 µA |
| Peak offstate voltage | 33 V DC (Collector-emitter reverse voltage) |
| Current limitation at short-circuits | > 2 A (short-circuit-proof) |
| Voltage drop at max. limiting continuous current | ≤ 0.3 V |
| Output circuit | 3-conductor, ground-referenced |
| Indication | Red LED |
| Type of protection | Reverse polarity protection |
| Free-wheeling diode | |
| Surge protection | |
| Protective circuit/component | Polarity protection diode |
| Damping diode | |
| Suppressor diode |
Connection data, input side
| Connection name | Input side |
|---|---|
| Connection method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Conductor cross section solid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
Connection data, output side
| Connection name | Output side |
|---|---|
| Connection method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Conductor cross section solid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
General
| Test voltage input/output | 2.5 kV |
|---|---|
| 2.5 kV AC | |
| Mounting position | any |
| Assembly instructions | In rows with zero spacing |
| Operating mode | 100% operating factor |
| Flammability rating according to UL 94 | V0 |
| Standards/regulations | IEC 60664 |
| EN 50178 | |
| Degree of pollution | 2 |
| Overvoltage category | III |
Standards and Regulations
| Standards/regulations | IEC 60664 |
|---|---|
| EN 50178 | |
| Insulation | Basic insulation |
| Degree of pollution | 2 |
| Overvoltage category | III |
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
| Feature Name | Feature Value |
|---|---|
| Input voltage (EF003840) | 4 V |
| Type of voltage (input voltage) (EF003033) | DC |
| Output voltage (EF003933) | 10 V |
| Type of output voltage (EF008222) | DC |
| Rated operation current Ie (EF001443) | 2 A |
| Type of digital output (EF003601) | Electronic |
| With LED indication (EF005950) | Yes |
