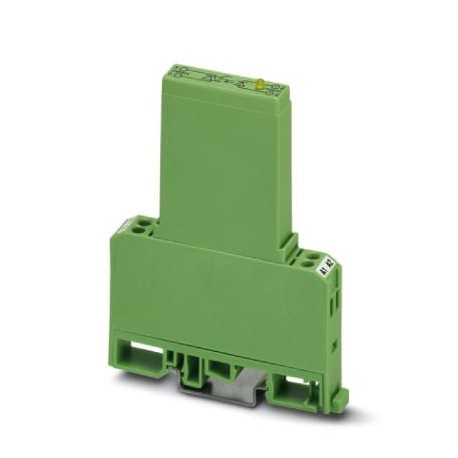

PHOENIX CONTACT EMG 12-OV-24DC/240AC/1 EMG 12-OV- 24DC/240AC/1 2948827 PHOENIX CONTACT Solid-state relay module View larger
Images are for illustrative purposes only. Please refer to data sheet for details

EMG 12-OV- 24DC/240AC/1 2948827 PHOENIX CONTACT Solid-state relay module

EMG 12-OV-24DC/240AC/1

2948827

PHOENIX CONTACT

10 Pcs.

Solid-state relay module Solid state power relay, with indicator light and protection circuit in input and output circuit, input: 24 V DC, output: 24-280 V AC/max. 1 A

Automation > Optocoupler
Industrial Relays

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2948827
Packing unit10 pc
Catalog pagePage 139 (IF-2011)
GTIN4017918083496
Weight per Piece (excluding packing)46.640 g
Custom tariff number85364190
Country of originDE (Germany)

Dimensions

Width12.5 mm
Height75 mm
Depth102 mm

Ambient conditions

Ambient temperature (operation)-20 °C ... 60 °C
Ambient temperature (storage/transport)-20 °C ... 70 °C
Degree of protectionIP20

Input data

Nominal input voltage UN24 V DC
Input voltage range in reference to UN0.8 ... 1.2
Input voltage range19.2 V DC ... 28.8 V DC
Switching threshold "0" signal in reference to UN≤ 0.4
Switching threshold "1" signal in reference to UN≥ 0.8
Typical input current at UN6.8 mA
Typical response timemax. one half cycle - zero-voltage crossing
Typical turn-off timemax. one half cycle - zero-current crossing
Status displayYellow LED
Type of protectionReverse polarity protection
Surge protection
Protective circuit/componentPolarity protection diode
Varistor
Transmission frequency10 Hz

Output data

Output nominal voltage240 V AC
Output voltage range24 V AC ... 280 V AC (50 Hz ... 60 Hz)
Limiting continuous current1 A (see derating curve)
Min. load current50 mA
Leakage current3.5 mA
Surge current125 A (t = 10 ms)
Max. load value78 A2s (I2x t where t = 10 ms)
Peak offstate voltage600 V (Periodic peak reverse voltage)
Voltage drop at max. limiting continuous current≤ 1.5 V
Output circuit2-wire, floating
Type of protectionRC element
Protective circuit/componentRC element

Connection data, input side

Connection nameInput side
Connection methodScrew connection
Stripping length8 mm
Screw threadM3
Conductor cross section solid0.2 mm² ... 4 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section AWG24 ... 12

Connection data, output side

Connection nameOutput side
Connection methodScrew connection
Stripping length8 mm
Screw threadM3
Conductor cross section solid0.2 mm² ... 4 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section AWG24 ... 12

General

Test voltage input/output3.5 kV AC
3.5 kV AC
Mounting positionany
Assembly instructionsMounted in rows with zero spacing: Horizontal/not in rows: Any
Operating mode100% operating factor
Flammability rating according to UL 94V0
Standards/regulationsIEC 60664
EN 50178

Standards and Regulations

Standards/regulationsIEC 60664
EN 50178
InsulationBasic insulation
Flammability rating according to UL 94V0

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2948827 Relays (EC001504)
Feature Name Feature Value
Input voltage (EF003840) 19.2 V
Type of voltage (input voltage) (EF003033) DC
Output voltage (EF003933) 24 V
Type of output voltage (EF008222) AC
Rated operation current Ie (EF001443) 1 A
Type of digital output (EF003601) Electronic
With LED indication (EF005950) Yes
