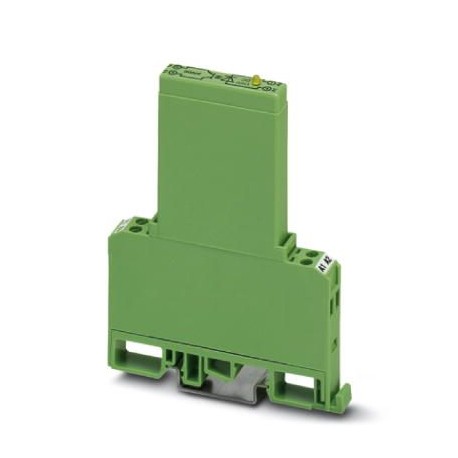

PHOENIX CONTACT EMG 10-OV-110DC/24DC/1 EMG 10-OV-110DC/24DC/1 2944245 PHOENIX CONTACT Solid-state relay module View larger
Images are for illustrative purposes only. Please refer to data sheet for details

EMG 10-OV-110DC/24DC/1 2944245 PHOENIX CONTACT Solid-state relay module

EMG 10-OV-110DC/24DC/1

2944245

PHOENIX CONTACT

10 Pcs.

Solid-state relay module Solid-state power relay, with indicator light and protection circuit in input and output circuit, input: 110 V DC, output: 5-36 V DC/max. 1 A

Automation > Optocoupler
Industrial Relays

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2944245
Packing unit10 pc
NoteMade to Order (non-returnable)
Catalog pagePage 138 (IF-2011)
GTIN4017918081546
Weight per Piece (excluding packing)40.530 g
Custom tariff number85364900
Country of originDE (Germany)

Dimensions

Width10 mm
Height75 mm
Depth102 mm

Ambient conditions

Ambient temperature (operation)-20 °C ... 50 °C
Ambient temperature (storage/transport)-20 °C ... 70 °C
Degree of protectionIP20

Input data

Nominal input voltage UN110 V DC
Input voltage range in reference to UN0.9 ... 1.1
Input voltage range99 V DC ... 121 V DC
Switching threshold "0" signal in reference to UN≤ 0.23
Switching threshold "1" signal in reference to UN≥ 0.9
Typical input current at UN4 mA
Typical response time0.1 ms
Typical turn-off time0.2 ms
Status displayYellow LED
Type of protectionReverse polarity protection
Protective circuit/componentPolarity protection diode
Transmission frequency500 Hz

Output data

Output nominal voltage24 V DC
Output voltage range5 V DC ... 36 V DC
Limiting continuous current1 A (see derating curve)
Surge current2 A (t = 1 s)
Peak offstate voltage45 V DC (Collector-emitter reverse voltage)
Voltage drop at max. limiting continuous current≤ 1 V
Output circuit2-wire, floating
Type of protectionReverse polarity protection
Protective circuit/componentPolarity protection diode

Connection data, input side

Connection nameInput side
Connection methodScrew connection
Stripping length8 mm
Screw threadM3
Conductor cross section solid0.2 mm² ... 4 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section AWG24 ... 12

Connection data, output side

Connection nameOutput side
Connection methodScrew connection
Stripping length8 mm
Screw threadM3
Conductor cross section solid0.2 mm² ... 4 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section AWG24 ... 12

General

Test voltage input/output3.5 kV AC
3.5 kV AC
Mounting positionany
Assembly instructionsIn rows with zero spacing
Operating mode100% operating factor
Flammability rating according to UL 94V0
Standards/regulationsIEC 60664
EN 50178

Standards and Regulations

Standards/regulationsIEC 60664
EN 50178
InsulationBasic insulation
Flammability rating according to UL 94V0

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2944245 Relays (EC001504)
Feature Name Feature Value
Input voltage (EF003840) 99 V
Type of voltage (input voltage) (EF003033) DC
Output voltage (EF003933) 5 V
Type of output voltage (EF008222) DC
Rated operation current Ie (EF001443) 1 A
Type of digital output (EF003601) Electronic
With LED indication (EF005950) Yes
