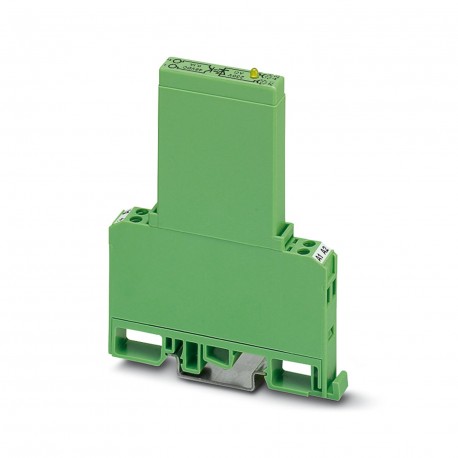

EMG 10-OE-230AC/ 48DC/100 2948953 PHOENIX CONTACT Solid-state relay module

EMG 10-OE-230AC/ 48DC/100

2948953

PHOENIX CONTACT

10 Pcs.

Solid-state relay module Input solid-state relay, with indicator light and protection circuit in input and output circuit, input: 230 V AC, output: 4 - 48 V DC/max. 100 mA Solid state input relay, with LEDs and protection in the input and output circuits, input: 230 V AC, output: 4 - 48 V DC/max. 100 mA

Automation > Optocoupler
Industrial Relays

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2948953
Packing unit10 pc
NoteMade to Order (non-returnable)
Catalog pagePage 141 (IF-2011)
GTIN4017918083625
Weight per Piece (excluding packing)41.170 g
Custom tariff number85364900
Country of originDE (Germany)

Dimensions

Width10 mm
Height75 mm
Depth102 mm

Ambient conditions

Ambient temperature (operation)-20 °C ... 60 °C
Ambient temperature (storage/transport)-20 °C ... 70 °C
Degree of protectionIP20

Input data

Nominal input voltage UN230 V AC
Input voltage range in reference to UN0.9 ... 1.1
Input voltage range207 V AC ... 253 V AC
Switching threshold "0" signal in reference to UN≤ 0.4
Switching threshold "1" signal in reference to UN≥ 0.8
Typical input current at UN3.5 mA
Typical response time10 ms
Typical turn-off time10 ms
Status displayYellow LED
Type of protectionReverse polarity protection
Surge protection
Protective circuit/componentPolarity protection diode
Transmission frequency10 Hz

Output data

Output nominal voltage48 V DC
Output voltage range4 V DC ... 48 V DC
Limiting continuous current100 mA
Voltage drop at max. limiting continuous current0.9 V
Output circuit2-wire, floating
Type of protectionReverse polarity protection
Surge protection
Protective circuit/componentPolarity protection diode

Connection data, input side

Connection nameInput side
Connection methodScrew connection
Stripping length8 mm
Screw threadM3
Conductor cross section solid0.2 mm² ... 4 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section AWG24 ... 12

Connection data, output side

Connection nameOutput side
Connection methodScrew connection
Stripping length8 mm
Screw threadM3
Conductor cross section solid0.2 mm² ... 4 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section AWG24 ... 12

General

Test voltage input/output3.5 kV AC
3.5 kV AC
Mounting positionany
Assembly instructionsIn rows with zero spacing
Operating mode100% operating factor
Flammability rating according to UL 94V0
Standards/regulationsIEC 60664
EN 50178
Degree of pollution2
Overvoltage categoryIII

Standards and Regulations

Standards/regulationsIEC 60664
EN 50178
InsulationBasic insulation
Degree of pollution2
Overvoltage categoryIII
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2948953 Relays (EC001504)
Feature Name Feature Value
Input voltage (EF003840) 207 V
Type of voltage (input voltage) (EF003033) AC
Output voltage (EF003933) 4 V
Type of output voltage (EF008222) DC
Rated operation current Ie (EF001443) 0.1 A
Type of digital output (EF003601) Electronic
With LED indication (EF005950) Yes
