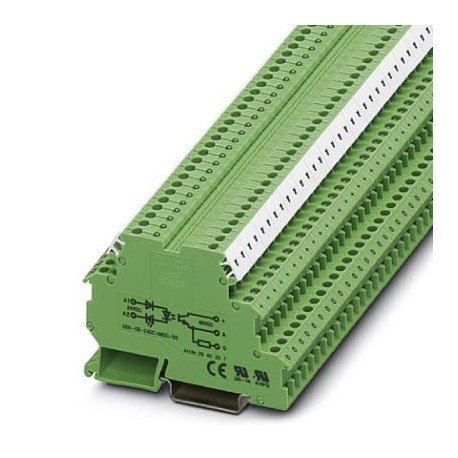

DEK-OE-230AC/ 48DC/100/SO 46 2964678 PHOENIX CONTACT Solid-state relay terminal block

DEK-OE-230AC/ 48DC/100/SO 46

2964678

PHOENIX CONTACT

1 Pcs.

Solid-state relay terminal block Solid-state relay interface, anti-induction parasitic on the control side, input: 230 V AC, output: 48 V DC/100 mA

Automation > Optocoupler
Industrial Relays

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2964678
Packing unit10 pc
Catalog pagePage 445 (C-5-2017)
GTIN4017918131067
Weight per Piece (excluding packing)21.800 g
Custom tariff number85364900
Country of originCN (China)

Dimensions

Width6.2 mm
Height80 mm
Depth56 mm

Ambient conditions

Ambient temperature (operation)0 °C ... 50 °C
Ambient temperature (storage/transport)0 °C ... 70 °C

Input data

Nominal input voltage UN230 V AC
Input voltage range in reference to UN0.9 ... 1.1
Input voltage range207 V AC ... 253 V AC
Switching threshold "0" signal, voltage≤ 92 V AC
Switching threshold "1" signal voltage> 207 V AC
Typical input current at UN2.5 mA
Typical response time4.4 ms
Typical turn-off time14 ms
Operating voltage displayYellow LED
Type of protectionSurge protection
RC element
Protective circuit/componentVaristor
RC element
Transmission frequency5 Hz

Output data

Output voltage range3 V DC ... 48 V DC
Limiting continuous current100 mA
Voltage drop at max. limiting continuous current≤ 0.9 V
Output circuit3-conductor, ground-referenced
Type of protectionReverse polarity protection
Free running
Protective circuit/componentPolarity protection diode
Damping diode

Connection data, input side

Connection nameInput side
Connection methodScrew connection
Stripping length8 mm
Screw threadM3
Conductor cross section solid0.2 mm² ... 2.5 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section AWG24 ... 12
Torque0.5 Nm

Connection data, output side

Connection nameOutput side
Connection methodScrew connection
Stripping length8 mm
Screw threadM3
Conductor cross section solid0.2 mm² ... 2.5 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section AWG24 ... 12
Torque0.5 Nm

General

NoteThe housing is open on one side. The appropriate cover is D-DEK 1,5 GN (2716949).
Type of noteNote on application
NoteUse of EB 80-DIK... bridges in the DEK terminal blocks: Absorption of humidity from the ambient air as well as an unfavorable tolerance between a larger number of DEK terminal blocks and the EB 80-DIK... bridge may cause (minor) expansion of the DEK housing. When the EB 80-DIK... bridges are used, therefore, it is recommended that these be disconnected after about 10 to 12 DEK terminal blocks and a wire bridge to the next DEK terminal block be inserted in their place.
Test voltage input/output2.5 kV AC
2.5 kV AC
Mounting positionany
Assembly instructionsIn rows with zero spacing
Operating mode100% operating factor
Standards/regulationsIEC 60664
EN 50178
Degree of pollution2
Overvoltage categoryIII

Standards and Regulations

Standards/regulationsIEC 60664
EN 50178
InsulationBasic insulation
Degree of pollution2
Overvoltage categoryIII

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2964678 Relays (EC001504)
Feature Name Feature Value
Input voltage (EF003840) 207 V
Type of voltage (input voltage) (EF003033) AC
Output voltage (EF003933) 3 V
Type of output voltage (EF008222) DC
Rated operation current Ie (EF001443) 0.1 A
Type of digital output (EF003601) Electronic
With LED indication (EF005950) Yes

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
