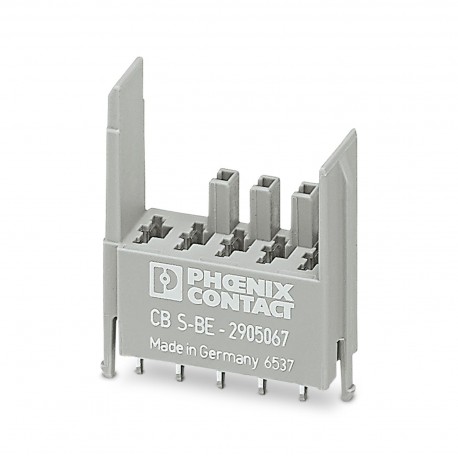

CB S-BE 2905067 PHOENIX CONTACT Base element
CB S-BE
2905067
PHOENIX CONTACT
30 Pcs.
Base element
Basic soldering element for PCB mounting for housing CB TM device protection switches... or CB E...
Solder base element for PCB mounting for accommodating CB TM... or CB E... device circuit breakers
Automation > Accessories/spare parts for electrical fuses/fuse holders
Over Current Protection
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Base element |
| Product family | CB BE |
| Type | Base element, PCB mounting |
Electrical properties
| General | |
| Rated insulation voltage Ui | 80 V DC |
| 277 V AC | |
| Rated surge voltage | 2.5 kV |
| Insertion/withdrawal cycles | 50 |
| Main circuit | |
| Rated voltage | 80 V DC |
| 277 V AC | |
| Rated current IN | 16 A |
| Remote indication circuit | |
| Rated voltage | 80 V DC |
| 277 V AC | |
| Rated current IN | 1 A |
Connection data
| Connection method | Solder connection |
Dimensions
| Dimensional drawing |  |
| Width | 12.3 mm |
| Height | 34.8 mm |
| Depth | 36.4 mm |
Material specifications
| Color | gray (RAL 7042) |
| Flammability rating according to UL 94 | V0 |
| Housing material | PA 6.6 |
Environmental and real-life conditions
| Ambient conditions | |
| Degree of protection | IP30 (Plug-in area with plugged-in device) |
| IP00 (Connection area) | |
| Ambient temperature (operation) | -30 °C ... 60 °C |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Humidity test | 240 h, 95 % RH, 40 °C |
Standards and regulations
| Standards/specifications | DIN EN 50155 |
| Standards/specifications | IEC 60068-2 |
Mounting
| Mounting type | On PCB |
| Feature Name | Feature Value |
|---|---|
| Accessory (EF013236) | No |
| Spare part (EF013237) | No |
