View larger
Images are for illustrative purposes only. Please refer to data sheet for details

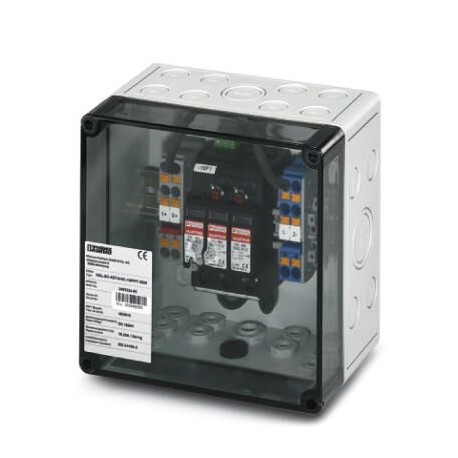

SOL-SC-4ST-0-DC-1MPPT-2000 2403334 PHOENIX CONTACT String combiner box (SCB)
SOL-SC-4ST-0-DC-1MPPT-2000
2403334
PHOENIX CONTACT
1 Pcs.
String combiner box (SCB)
String box for photovoltaic installations up to 1000 V DC for the connection of 1x 4 strings. With surge protection (type 2) and cable glands for the inlet and outlet side.
Automation > Photovoltaic DC Stringbox
Industry Solutions (IS)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲String combiner box for photovoltaic systems up to 1000 V DC for the connection of 1x 4 strings. With surge protection and cable glands for the input and output side.
Key Commercial Data
| Orderkey | 2403334 |
|---|---|
| Packing unit | 1 pc |
| Minimum order quantity | 25 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4055626369082 |
| Weight per Piece (excluding packing) | 1,300.000 g |
| Custom tariff number | 85363030 |
| Country of origin | DE (Germany) |
System parameter
| System voltage | 1000 V DC (Umax) |
|---|---|
| Number of string inputs | 4 |
| Current per string (max.) | 10.25 A (Imax) |
| Number of outputs | 1 (per MPP tracker) |
| Number of supported MPP trackers | 1 |
Safety equipment
| Surge protective device | T2 |
|---|---|
| Protection level Up | ≤ 3.7 kV |
| Total discharge current Itotal(8/20) µs | 40 kA |
Cable entry
| Type of cable entry | Cable gland |
|---|---|
| Cable cross section string input | 2.5 mm² ... 6 mm² |
| Sealing area string input | 3 mm ... 6.5 mm |
| Cable cross section output | 2.5 mm² ... 6 mm² |
| Sealing area output | 3 mm ... 6.5 mm |
| Cable cross section grounding | 16 mm² |
| Sealing area grounding | 6 mm ... 12 mm |
General data
| Material cover/door | Polycarbonate (transparent) |
|---|---|
| Degree of protection | IP65 |
| Protection class | II |
