SOL-SC-3ST-0-DC-1MPPT-1001EQ 1064363 PHOENIX CONTACT Switching device combination
SOL-SC-3ST-0-DC-1MPPT-1001EQ
1064363
PHOENIX CONTACT
1 Pcs.
Switching device combination

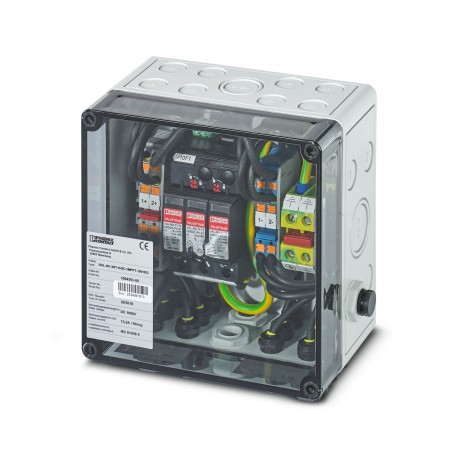

String box for photovoltaic installations up to 1000 V DC for the connection of 1x 3 strings. With surge protection (type 1/2) and SUNCLIX DC connector for the input and output side (SUNCLIX coupling connector included in the scope of delivery).
String combiner box for photovoltaic systems up to 1000 V DC for connecting 1x 3 strings. Same number of input and output strings. With surge protection (type 1/2) and SUNCLIX DC connectors for the input and output side (SUNCLIX mating connectors supplied as standard).
Automation > Photovoltaic DC Stringbox
Industry Solutions (IS)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | String combiner box (SCB) |
| Scope of delivery | SUNCLIX DC connector for connecting the SCB |
| Insulation characteristics | |
| Protection class | II |
Electrical properties
| General | |
| MPP voltage Un | max. 1000 V DC |
| Non-load voltage UOC | max. 1100 V DC |
| Current per string Imax | max. 13.3 A |
| Total current MPP tracker | max. 40 A |
| Surge protection | |
| EN type | T1 |
| IEC test classification | T1 |
| Protection level Up | ≤ 3.5 kV |
| Total discharge current Itotal(10/350) µs | 5 kA |
| Total discharge current Itotal(8/20) µs | 40 kA |
| Short-circuit current rating ISCPV | 40 A |
Input data
| DC | |
| Number of inputs: Strings | 3 (per MPP tracker) |
| Number of supported MPP trackers | 1 |
Output data
| DC | |
| Number of outputs: MPP tracker | 1 |
| Number of outputs: ± | 3 (per MPP tracker) |
Connection data
| DC input | |
| Type of cable entry | SUNCLIX |
| Cable cross-section range: | 2.5 mm² ... 6 mm² |
| Protective bonding and protective grounding conductor | |
| Type of cable entry | Cable gland |
| Connection method | Screw connection |
| Cable cross-section range: | 2x 16 mm² |
| External cable diameter | 6 mm ... 12 mm |
| DC output | |
| Type of cable entry | SUNCLIX |
| Cable cross-section range: | 2.5 mm² ... 6 mm² |
Dimensions
| Housing | |
| Width | 180 mm |
| Height | 180 mm |
| Depth | 111 mm |
Material specifications
| Material Housing | Polycarbonate |
| Material Cover/door | Polycarbonate (transparent) |
Environmental and real-life conditions
| Ambient conditions | |
| Degree of protection | IP65 |
| Ambient temperature (operation) | -20 °C ... 55 °C |
