View larger
Images are for illustrative purposes only. Please refer to data sheet for details

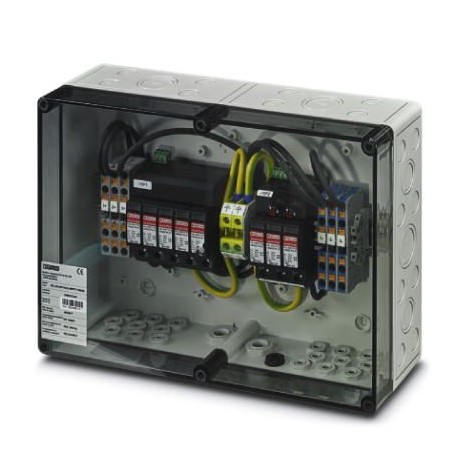

SOL-SC-2ST-0-DC-3MPPT-1000SE 1053613 PHOENIX CONTACT Switching device combination
SOL-SC-2ST-0-DC-3MPPT-1000SE
1053613
PHOENIX CONTACT
1 Pcs.
Switching device combination
String box for photovoltaic installations up to 1000 V DC for the connection of 3x 2 strings. With surge protection (type 1/2) and cable glands for the inlet and outlet side.
Automation > Photovoltaic DC Stringbox
Industry Solutions (IS)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1053613 |
|---|---|
| Packing unit | 1 pc |
| GTIN | 4055626685687 |
| Weight per Piece (excluding packing) | 3,600.000 g |
| Custom tariff number | 85363030 |
| Country of origin | DE (Germany) |
System parameter
| System voltage | 1000 V DC (Umax) |
|---|---|
| Number of string inputs | 2 (per MPP tracker) |
| Number of outputs | 1 (per MPP tracker) |
| Number of supported MPP trackers | 3 |
Safety equipment
| Surge protective device | T1 / T2 |
|---|---|
| Protection level Up | ≤ 3.5 kV |
| Total discharge current Itotal(8/20) µs | 40 kA |
| Total discharge current Itotal(10/350) µs | 5 kA |
Cable entry
| Type of cable entry | Cable gland |
|---|---|
| Cable cross section string input | 2.5 mm² ... 6 mm² |
| Sealing area string input | 3 mm ... 6.5 mm |
| Cable cross section output | 2.5 mm² ... 6 mm² |
| Sealing area output | 3 mm ... 6.5 mm |
| Cable cross section grounding | 16 mm² (2 x) |
| Sealing area grounding | 6 mm ... 12 mm |
General data
| Housing material | Polycarbonate |
|---|---|
| Material cover/door | Polycarbonate (transparent) |
| Degree of protection | IP65 |
| Protection class | II |
