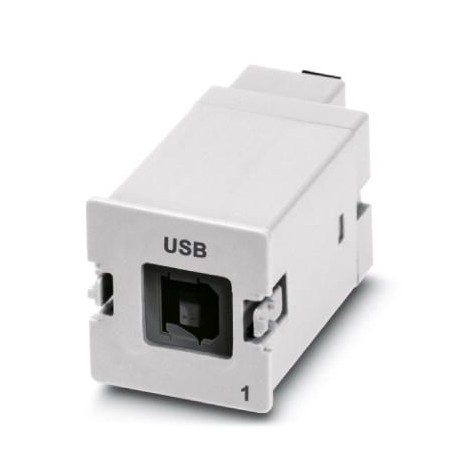

NLC-MOD-USB 2701195 PHOENIX CONTACT nanoLC module
NLC-MOD-USB
2701195
PHOENIX CONTACT
1 Pcs.
nanoLC module
Serial connection to the PC's USB port for data transmission or software configuration
Automation > Logic module
Control Systems (CST)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2701195 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 469 (C-8-2015) |
| GTIN | 4046356325400 |
| Weight per Piece (excluding packing) | 43.600 g |
| Custom tariff number | 85366990 |
| Country of origin | IN (India) |
Ambient conditions
| Degree of protection | IP20 |
|---|---|
| Ambient temperature (operation) | -25 °C ... 60 °C |
| Ambient temperature (storage/transport) | -25 °C ... 85 °C |
Supply
| Supply voltage | 24 V DC (Power available via logic module) |
|---|---|
| Max. current consumption | 18 mA |
| Typical current consumption | 10 mA |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027250315eCl@ss 4.127250315eCl@ss 5.027242216eCl@ss 5.127242700eCl@ss 6.027242200eCl@ss 7.027242216eCl@ss 8.027242216eCl@ss 9.027242216
| Feature Name | Feature Value |
|---|---|
| Number of analogue inputs (EF001994) | 0 |
| Number of analogue outputs (EF001995) | 0 |
| Number of digital inputs (EF001992) | 0 |
| Number of digital outputs (EF001993) | 0 |
| With relay output (EF003198) | No |
| Number of HW-interfaces industrial Ethernet (EF003020) | 0 |
| Number of interfaces PROFINET (EF006932) | 0 |
| Number of HW-interfaces RS-232 (EF003021) | 0 |
| Number of HW-interfaces RS-422 (EF003022) | 0 |
| Number of HW-interfaces RS-485 (EF003023) | 0 |
| Number of HW-interfaces serial TTY (EF003024) | 0 |
| Number of HW-interfaces USB (EF003025) | 0 |
| Number of HW-interfaces parallel (EF003026) | 0 |
| Number of HW-interfaces wireless (EF006933) | 0 |
| Number of HW-interfaces other (EF003027) | 0 |
| With optical interface (EF003028) | No |
| IO link master (EF007298) | No |
| Redundancy (EF003156) | No |
| Basic device (EF007279) | No |
| Expandable (EF000119) | No |
| Expansion device (EF007163) | No |
| With time switch clock (EF000256) | No |
| Suitable for rail mounting (EF003972) | No |
| Wall mounting/direct mounting (EF007020) | No |
| Front built-in possible (EF007016) | No |
| Rack-assembly possible (EF007018) | No |
| Suitable for safety functions (EF001597) | No |
| SIL according to IEC 61508 (EF009889) | None |
| Performance level according to EN ISO 13849-1 (EF007399) | None |
| Appendant operation agent (Ex ia) (EF004141) | No |
| Appendant operation agent (Ex ib) (EF004142) | No |
| Explosion safety category for gas (EF003997) | None |
| Explosion safety category for dust (EF003998) | None |
| Width (EF000008) | 24.5 mm |
| Height (EF000040) | 25.5 mm |
| Depth (EF000049) | 49 mm |
