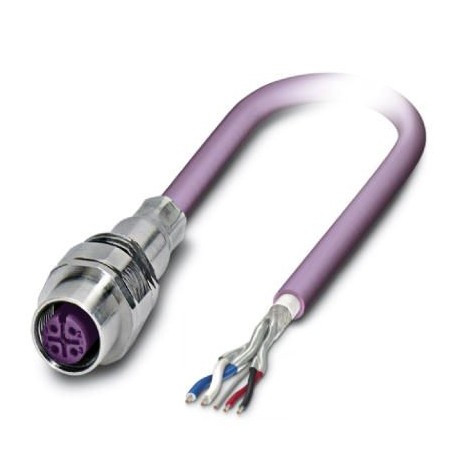

PHOENIX CONTACT SACCEC-M12FS-5CON-M16/ 5,0-920 SACCEC-M12FS-5CON-M16/ 5,0-920 1525704 PHOENIX CONTACT Bus system flat-type plug View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SACCEC-M12FS-5CON-M16/ 5,0-920 1525704 PHOENIX CONTACT Bus system flat-type plug

SACCEC-M12FS-5CON-M16/ 5,0-920

1525704

PHOENIX CONTACT

1 Pcs.

Bus system flat-type plug Conect. plug. to be apar. front wall, CANopen®, DeviceNet™, 5-pole, halogen-free PUR, lilac red RAL 4001, shielded, Connection female, straight, M12, coding: A, free cable end, Front mounting, M16 x 1.5, cable length: 5 m, CANopen®/DeviceNet™, PUR, violet, Alternative product according to RoHS II without exception 6c (Pb< 0.1%) item code: 1239896

Cables > Circular connector, mounting (with cable)
Field Device Connectors (FDC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1525704
Packing unit1 pc
NoteMade to Order (non-returnable)
Catalog pagePage 427 (C-2-2017)
GTIN4046356022446
Weight per Piece (excluding packing)312.000 g
Custom tariff number85369010
Country of originDE (Germany)

Dimensions

Length of cable5 m

Ambient conditions

Ambient temperature (operation)-25 °C ... 85 °C (Plug / socket)
Degree of protectionIP67

General

NoteThe electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration.
Rated current at 40°C4 A
Rated voltage60 V
Rated surge voltage1.5 kV
Number of positions5
Insulation resistance≥ 100 MΩ
CodingA - standard
Standards/regulationsM12 connector IEC 61076-2-101
Status displayNo
Overvoltage categoryII
Degree of pollution3
Test voltage2500 V
Connection methodCAN Bus / DeviceNet
Insertion/withdrawal cycles> 100
Torque3 Nm ... 4 Nm (Installation-side)
Mounting typeFront mounting M16 x 1.5 With locking nut

Material

Flammability rating according to UL 94V0
Contact materialCuZn
Contact surface materialNi/Au
Contact carrier materialPA 6.6
Material, knurlsNickel-plated brass
Sealing materialNBR

Standards and Regulations

Standard designationM12 connector
Standards/regulationsIEC 61076-2-101
Flammability rating according to UL 94V0

Cable

Cable typeCAN Bus/DeviceNet
Cable type (abbreviation)920
UL AWM style21198 (80°C/300 V)
Signal type/categoryCANopen®
DeviceNet™
Cable structure2xAWG24/19+2xAWG22/19
Conductor cross section2x 0.25 mm² (Data cable)
2x 0.34 mm² (Power supply)
1x 0.34 mm² (Drain wire)
AWG signal line24
AWG power supply22
Conductor structure signal line19x 0.13 mm
Conductor structure, voltage supply19x 0.15 mm
Core diameter including insulation1.95 mm ±0.05 mm (Data cable)
1.4 mm ±0.05 mm (Power supply)
Wire colorsRed-black, blue-white
Twisted pairs2 cores to the pair
Type of pair shieldingPlastic-coated aluminum foil, aluminum side outside
Overall twist2 pairs around a drain wire in the center to the core
ShieldingTinned copper braided shield
Optical shield covering80 %
External sheath, colorviolet RAL 4001
External cable diameter D6.7 mm ±0,3 mm
Minimum bending radius, fixed installation5 x D
Minimum bending radius, flexible installation10 x D
Number of bending cycles5000000
Bending radius70 mm
Minimum bending radius, drag chain applications10 x D
Traversing path4.5 m
Traversing rate3 m/s
Acceleration3 m/s²
Cable weight90 kg/km
Outer sheath, materialPUR
Material conductor insulationFoamed PE (Data cable)
PE (Power supply)
Conductor materialTin-plated Cu litz wires
Insulation resistance≥ 5 GΩ*km (Data cable)
≥ 5 GΩ*km (Power supply)
Loop resistance≤ 181.80 Ω/km (Data cable)
≤ 114.80 Ω/km (Power supply)
Cable capacitynom. 40 nF/km (Data cable)
Wave impedance120 Ω ±10 % (with 1 MHz)
Attenuation≤ 22.9 dB/km (with 1 MHz)
≤ 16.4 dB/km (At 500 kHz)
≤ 9.5 dB/km (At 125 kHz)
Nominal voltage, cable≤ 300 V (Peak value, not for high-power applications)
Test voltage Core/Core2000 V (50 Hz, 1 min.)
Test voltage Core/Shield2000 V (50 Hz, 1 min.)
Flame resistanceUL 1581, Sec. 1060 (FT-1)
IEC 60332-1
in accordance with ISO 6722-1 5.22 (UN ECE-R 118.01)
Halogen-freein accordance with DIN VDE 0472 part 815
according to IEC 60754-1
Other resistanceLow adhesion
Ambient temperature (operation)-40 °C ... 80 °C (cable, fixed installation)
-20 °C ... 80 °C (cable, flexible installation)
Ambient temperature (storage/transport)-40 °C ... 80 °C

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 1525704 Connectors (EC003570)
Feature Name Feature Value
Cable length (EF000536) 5 mm
Type of plug-in contact, outer side (EF005528) None
Mounting method (EF000003) Front mounting
Housing material (EF001596) Other
Material of contact surface (EF004020) Other
Inflammability class of insulation material according to UL94 (EF002521) V0
Ambient temperature (EF002386) 85 °C
Operating temperature (EF002393) -25 °C
Rated voltage (EF000228) 48 V
With shield connection (EF002535) Yes
Screw-in thread (EF012303) M12
Min. number of insertion cycles (EF012212) 100
Degree of protection (IP), mounted (EF007466) Other
