PHOENIX CONTACT SACCBP-M12FSB-2CON-M16/0,5-910 SACCBP-M12FSB-2CON-M16/0,5-910 1534384 PHOENIX CONTACT Bus system flat-type plug View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SACCBP-M12FSB-2CON-M16/0,5-910 1534384 PHOENIX CONTACT Bus system flat-type plug

SACCBP-M12FSB-2CON-M16/0,5-910

1534384

PHOENIX CONTACT

1 Pcs.

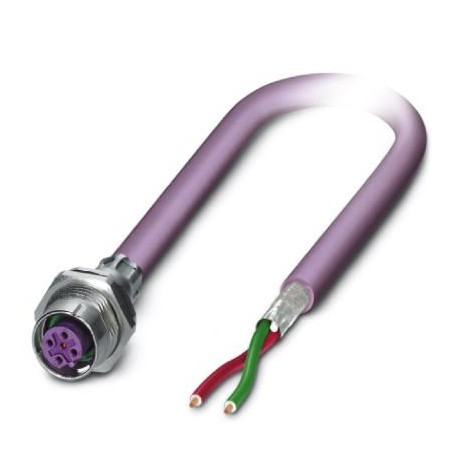

Bus system flat-type plug Conect. plug. to be apar. wall poster., PROFIBUS, 2-pole halogen-free, lilac red RAL 4001, shielded, Female connection, straight, M12, coding: B, to free cable end, Rear mounting, M16 x 1.5, Cable connection, cable length: 0.5 m, PROFIBUS, Alternative product according to RoHS II without exception 6c (Pb< 0.1%) item code: 1239928

Cables > Circular connector, mounting (with cable)
Field Device Connectors (FDC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1534384
Packing unit1 pc
NoteMade to Order (non-returnable)
Catalog pagePage 426 (C-2-2017)
GTIN4046356026550
Weight per Piece (excluding packing)54.400 g
Custom tariff number85444290
Country of originDE (Germany)

Dimensions

Length of cable0.5 m

Ambient conditions

Ambient temperature (operation)-25 °C ... 85 °C (Plug / socket)
Degree of protectionIP67

General

NoteThe electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration.
Rated current at 40°C4 A
Rated voltage60 V
Rated surge voltage1.5 kV
Number of positions2
Insulation resistance≥ 100 MΩ
CodingB - inverse
Standards/regulationsM12 connector IEC 61076-2-101
Status displayNo
Overvoltage categoryII
Degree of pollution3
Test voltage2500 V
Insertion/withdrawal cycles> 100

Material

Flammability rating according to UL 94V0
Contact materialCuZn
Contact surface materialNi/Au
Contact carrier materialPA 6.6
Material, knurlsNickel-plated brass
Sealing materialFKM

Standards and Regulations

Standard designationM12 connector
Standards/regulationsIEC 61076-2-101
Flammability rating according to UL 94V0

Cable

Cable typePROFIBUS
Cable type (abbreviation)910
UL AWM style21198 (80°C/300 V)
Signal type/categoryPROFIBUS
Cable structure1x2xAWG24/19
Conductor cross section2x 0.25 mm² (Signal line)
AWG signal line24
Conductor structure signal line19x 0.13 mm
Core diameter including insulation2.55 mm ±0.07 mm
Wire colorsRed, green
Overall twist2 cores with 2 fillers to the core
ShieldingPlastic-coated aluminum foil, tinned copper braided shield
Optical shield covering85 %
External sheath, colorviolet RAL 4001
External cable diameter D7.8 mm ±0.2 mm
Smallest bending radius, fixed installation40 mm
Smallest bending radius, movable installation65 mm
Number of bending cycles4000000
Bending radius65 mm
Traversing path4.5 m
Traversing rate3 m/s
Acceleration3 m/s²
Cable weight90 kg/km
Outer sheath, materialPUR
Material, fillerPP
Material conductor insulationFoam-Skin PP
Conductor materialTin-plated Cu litz wires
Insulation resistance≥ 5 GΩ*km
Conductor resistance≤ 78.6 Ω/km
Cable capacitynom. 30 pF/m
Wave impedance150 Ω ±10 % (3 MHz ... 20 MHz)
Attenuation≤ 0.049 dB/m (at 16 MHz)
Nominal voltage, cable30 V
Test voltage Core/Core1500 V (50 Hz, 1 min.)
Test voltage Core/Shield1500 V (50 Hz, 1 min.)
Flame resistanceUL 1581, Sec. 1060 (FT-1)
IEC 60332-1-2
Halogen-freein accordance with DIN VDE 0472 part 815
according to IEC 60754-1
Other resistanceLow adhesion
Ambient temperature (operation)-40 °C ... 80 °C (cable, fixed installation)
-30 °C ... 80 °C (cable, flexible installation)
≤ 70 °C (cable, drag chain applications)
Ambient temperature (storage/transport)-40 °C ... 80 °C

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 1534384 Connectors (EC003570)
Feature Name Feature Value
Cable length (EF000536) 0.5 mm
Type of plug-in contact, outer side (EF005528) None
Mounting method (EF000003) Back wall mounting
Housing material (EF001596) Other
Material of contact surface (EF004020) Other
Inflammability class of insulation material according to UL94 (EF002521) V0
Ambient temperature (EF002386) 85 °C
Operating temperature (EF002393) -25 °C
Rated voltage (EF000228) 48 V
With shield connection (EF002535) Yes
Screw-in thread (EF012303) M12
Min. number of insertion cycles (EF012212) 100
Degree of protection (IP), mounted (EF007466) Other
