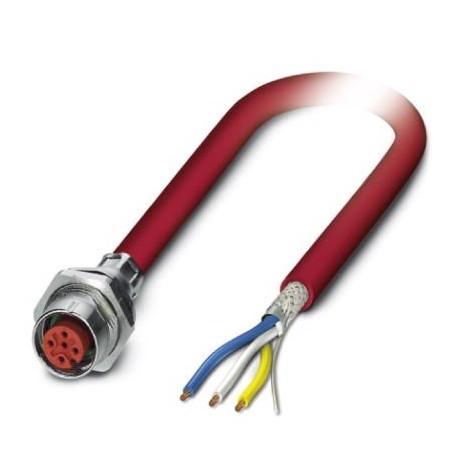

SACCBP-M12FS-4CON-M16/0,5-990 1559819 PHOENIX CONTACT Bus system flat-type plug
SACCBP-M12FS-4CON-M16/0,5-990
1559819
PHOENIX CONTACT
1 Pcs.
Bus system flat-type plug
Conect. plug. to be apar. wall poster., CC-Link, 4-pole, PVC, red, similar to RAL3000, Built-in mounting female, straight, M12-SPEEDCON, coding: A, to free cable end, Rear mounting, M16 x 1.5, Cable connection, cable length: 0.5 m, CC-Link, Alternative product according to RoHS II without exception 6c (Pb< 0.1%) item code: 1240071
Cables > Circular connector, mounting (with cable)
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1559819 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 401 (PC-2011) |
| GTIN | 4046356322126 |
| Weight per Piece (excluding packing) | 60.000 g |
| Custom tariff number | 85444290 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -25 °C ... 80 °C (Plug / socket) |
|---|---|
| Degree of protection | IP67 |
General
| Note | The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration. |
|---|---|
| Rated current at 40°C | 4 A |
| Rated voltage | 250 V |
| Rated surge voltage | 2.5 kV |
| Number of positions | 4 |
| Insulation resistance | ≥ 10 MΩ |
| Coding | A - standard |
| Signal type/category | CC link |
| Status display | No |
| Overvoltage category | II |
| Degree of pollution | 3 |
| Insertion/withdrawal cycles | > 100 |
| Torque | 2 Nm ... 3 Nm (Installation-side) |
Material
| Flammability rating according to UL 94 | V0 |
|---|---|
| Contact material | CuZn |
| Contact surface material | Ni/Au |
| Contact carrier material | PA 6.6 |
| Material, knurls | Nickel-plated brass |
| Sealing material | FKM |
Cable
| Cable type | CC-Link |
|---|---|
| Cable type (abbreviation) | 990 |
| Signal type/category | CC link, 10 Mbps |
| Cable structure | 3xAWG20/7 + 1xAWG22/19 (filler litz wire) |
| Conductor cross section | 0.5 mm² |
| AWG signal line | 20 |
| Conductor structure signal line | 7x 0.28 mm |
| Thickness, insulation | 0.89 mm (Outer cable sheath) |
| Wire colors | white, yellow, blue |
| Shielding | Plastic-coated aluminum foil, tinned copper braided shield |
| Optical shield covering | 78 % |
| External sheath, color | red |
| External cable diameter D | 7.7 mm |
| Smallest bending radius, fixed installation | 77 mm |
| Cable weight | 78.8 kg/km |
| Outer sheath, material | PVC |
| Material conductor insulation | foamed PE, with high density |
| Conductor material | Bare Cu litz wires |
| Conductor resistance | 31.2 Ω/km |
| Working capacitance | 61 pF |
| Wave impedance | 110 Ω |
| Nominal voltage, cable | 300 V |
| Ambient temperature (operation) | -30 °C ... 60 °C (cable, fixed installation) |
| -5 °C ... 60 °C (cable, flexible installation) |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027250313eCl@ss 4.127250313eCl@ss 5.027143423eCl@ss 5.127143400eCl@ss 6.027279200eCl@ss 7.027440103eCl@ss 8.027440103eCl@ss 9.027440102
| Feature Name | Feature Value |
|---|---|
| Cable length (EF000536) | 0.5 mm |
| Type of plug-in contact, outer side (EF005528) | None |
| Mounting method (EF000003) | Back wall mounting |
| Housing material (EF001596) | Other |
| Material of contact surface (EF004020) | Other |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Ambient temperature (EF002386) | 85 °C |
| Operating temperature (EF002393) | -25 °C |
| Rated voltage (EF000228) | 250 V |
| With shield connection (EF002535) | Yes |
| Screw-in thread (EF012303) | M12 |
| Min. number of insertion cycles (EF012212) | 100 |
| Degree of protection (IP), mounted (EF007466) | Other |
