SACCBP-FS-8CON-M16/2,0-PUR SCO 1419344 PHOENIX CONTACT Flush-type connector

SACCBP-FS-8CON-M16/2,0-PUR SCO

1419344

PHOENIX CONTACT

1 Pcs.

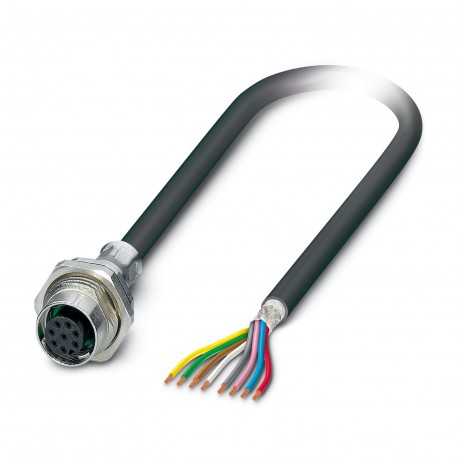

Flush-type connector Built-in mounting female, shielded, 8-pole, M12, A-coded, M16 threaded back/screw wall mount, with 2 m cable, 8 x 0.25 mm² Device connector rear mounting, Universal, 8-position, PUR halogen-free, black-gray RAL 7021, shielded, Socket, straight, M12-SPEEDCON, coding: A, on free cable end, Rear mounting, M16 x 1.5, Cable connection, cable length: 2 m, 0.25 mm2, PUR halogen-free black, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1239249

Cables > Circular connector, mounting (with cable)
Field Device Connectors (FDC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Notes
Notes on operationThe electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration.
Order information:Lock nut is included in the scope of delivery
Mounting
Mounting typeRear mounting M16 x 1.5 With flat nut
Assembly noteWith flat nut
Product properties
Product typeCircular connectors (device side)
Sensor typeUniversal
Number of positions8
No. of cable outlets1
Shieldedyes
CodingA
Thread typeM12
Data management status
Article revision12
Insulation characteristics
Overvoltage categoryII
Degree of pollution3
Material specifications
Flammability rating according to UL 94V0
Seal materialFKM
Contact materialCuZn
Contact surface materialAu
Contact carrier materialPA 6.6
Material for screw connectionZinc die-cast, nickel-plated
Outer sheath, materialPUR
Conductor materialBare Cu litz wires
Electrical properties
Rated surge voltage0.8 kV
Contact resistance≤ 3 mΩ
Insulation resistance≥ 100 MΩ
Nominal voltage UN30 V
Nominal current IN2 A
Max. conductor resistance78 Ω/km
Connection data
Conductor connection
Connection methodCable connection
Contact connection typeSocket
Conductor cross section8x 0.25 mm² (Signal line)
Tightening torque3 Nm ... 4 Nm (Installation-side)
Mechanical properties
Mechanical data
Insertion/withdrawal cycles> 100
Max. bending cycles2000000
Connector
Connection 1
Head designSocket
Head cable outletstraight
Head thread typeM12
Head locking typeSPEEDCON
CodingA
Connection 2
Head designfree cable end
Cable/line
Cable length2 m
PUR halogen-free black [PUR]
Dimensional drawingqdwkloiawu.jpg
Cable weight53 kg/km
UL AWM Style20549 / 10493 (80°C/300 V)
Number of positions8
Shieldedyes
Cable typePUR halogen-free black [PUR]
Conductor structure signal line32x 0.10 mm
AWG signal line24
Conductor cross section8x 0.25 mm² (Signal line)
Wire diameter incl. insulation1.17 mm ±0.02 mm
External cable diameter5.90 mm ±0.2 mm
Outer sheath, materialPUR
External sheath, colorblack-gray RAL 7021
Conductor materialBare Cu litz wires
Material wire insulationPP
Single wire, colorbrown, white, green, yellow, gray, pink, blue, red
Thickness, insulationapprox. 0.20 mm
Thickness, outer sheathapprox. 0.50 mm
Overall twist8 wires around filler to the core
Optical shield covering85 %
Max. conductor resistance≤ 78 Ω/km (at 20 °C)
Insulation resistance≥ 1 GΩ*km (at 20 °C)
Nominal voltage, cable≤ 300 V AC
Test voltage≥ 3000 V AC (Spark test)
Test voltage Core/Shield≥ 2000.00 V AC (for 60 s)
Minimum bending radius, fixed installation5 x D
Minimum bending radius, flexible installation10 x D
Smallest bending radius, fixed installation30 mm
Smallest bending radius, movable installation59 mm
Dynamic load capacity (bending)Max. bending cycles: 2000000, Bending radius: 10 x D, Traversing path: 10 m, Traversing rate: 3 m/s, Acceleration: 10 m/s²
Halogen-freein accordance with DIN VDE 0472 part 815
according to IEC 60754-1
Flame resistancein acc. with UL FT-2
according to UL 758/1581 (horizontal)
in accordance with UL 758/1581 FT2
According to DIN EN 60332-2-2 (20 s)
Resistance to oilin accordance with IEC 60811-404
Other resistancehydrolysis and microbe resistant
Resistant to salt water
low-abrasion
partly UV-resistant (in accordance with DIN EN ISO 4892-2-A)
Special propertiesFlexible cable conduit capable
Ambient temperature (operation)-40 °C ... 80 °C (cable, fixed installation)
-25 °C ... 80 °C (Cable, flexible installation)
Environmental and real-life conditions
Ambient conditions
Degree of protectionIP67 (When plugged in)
IP65 (When plugged in)
IP65/IP67
Ambient temperature (operation)-25 °C ... 85 °C (Plug / socket)
-40 °C ... 85 °C (without mechanical actuation)
-25 °C ... 85 °C (Cable, flexible installation)
-40 °C ... 85 °C (cable, fixed installation)
Standards and regulations
Standard designationM12 connector
Standards/specificationsIEC 61076-2-101

ETIM for 1419344 Connectors (EC002635)
Feature Name Feature Value
Contact type (EF001587) Other
Number of data contacts (EF012232) 0
Number of power contacts (EF012216) 0
Number of control contacts (EF012217) 8
Type of housing (EF006980) Straight
Rated current In (EF008250) 2 A
Ambient temperature (EF002386) -25 °C
Rated voltage (EF000228) 30 V
Over voltage category (EF006785) II
Pollution degree (EF006786) 3
Material of contact surface (EF004020) Gold
Housing material (EF001596) Plastic
Material thread ring (EF012304) Other
Type of locking (EF000208) Other
Inflammability class of insulation material according to UL94 (EF002521) V0
With protective conductor (EF007468) No
Degree of protection (IP), mounted (EF007466) IP67
Min. number of insertion cycles (EF012212) 100
Screened (EF000881) Yes
With status indication (EF001602) No
