View larger
Images are for illustrative purposes only. Please refer to data sheet for details

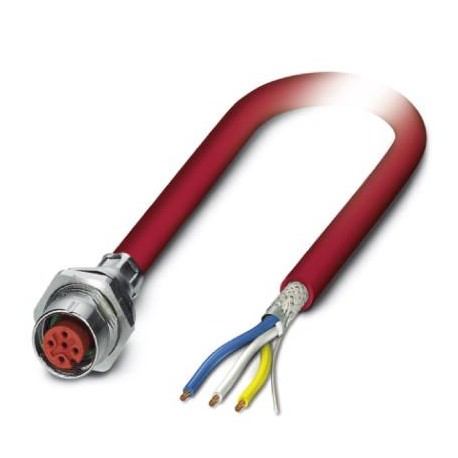

SACCBP-FS-4CON-PG9/2,0-990SCO 1437863 PHOENIX CONTACT Bus system flush-type socket
SACCBP-FS-4CON-PG9/2,0-990SCO
1437863
PHOENIX CONTACT
1 Pcs.
Bus system flush-type socket
Connectors > Sensor-actuator connector chassis
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1437863 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 401 (PC-2011) |
| GTIN | 4046356458603 |
| Weight per Piece (excluding packing) | 177.900 g |
| Custom tariff number | 85444290 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -25 °C ... 80 °C (Plug / socket) |
|---|---|
| Degree of protection | IP67 |
General
| Note | The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration. |
|---|---|
| Rated current at 40°C | 4 A |
| Rated voltage | 250 V |
| Rated surge voltage | 2.5 kV |
| Number of positions | 4 |
| Insulation resistance | ≥ 10 MΩ |
| Coding | A - standard |
| Signal type/category | CC link |
| Overvoltage category | II |
| Degree of pollution | 3 |
| Insertion/withdrawal cycles | > 100 |
| Torque | 2 Nm ... 3 Nm (Installation-side) |
Material
| Flammability rating according to UL 94 | V0 |
|---|---|
| Contact material | CuZn |
| Contact surface material | Ni/Au |
| Contact carrier material | PA 6.6 |
| Sealing material | FKM |
Cable
| Cable type | CC-Link |
|---|---|
| Cable type (abbreviation) | 990 |
| Signal type/category | CC link, 10 Mbps |
| Cable structure | 3xAWG20/7 + 1xAWG22/19 (filler litz wire) |
| Conductor cross section | 0.5 mm² |
| AWG signal line | 20 |
| Conductor structure signal line | 7x 0.28 mm |
| Thickness, insulation | 0.89 mm (Outer cable sheath) |
| Wire colors | white, yellow, blue |
| Shielding | Plastic-coated aluminum foil, tinned copper braided shield |
| Optical shield covering | 78 % |
| External sheath, color | red |
| External cable diameter D | 7.7 mm |
| Smallest bending radius, fixed installation | 77 mm |
| Cable weight | 78.8 kg/km |
| Outer sheath, material | PVC |
| Material conductor insulation | foamed PE, with high density |
| Conductor material | Bare Cu litz wires |
| Conductor resistance | 31.2 Ω/km |
| Working capacitance | 61 pF |
| Wave impedance | 110 Ω |
| Nominal voltage, cable | 300 V |
| Ambient temperature (operation) | -30 °C ... 60 °C (cable, fixed installation) |
| -5 °C ... 60 °C (cable, flexible installation) |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
