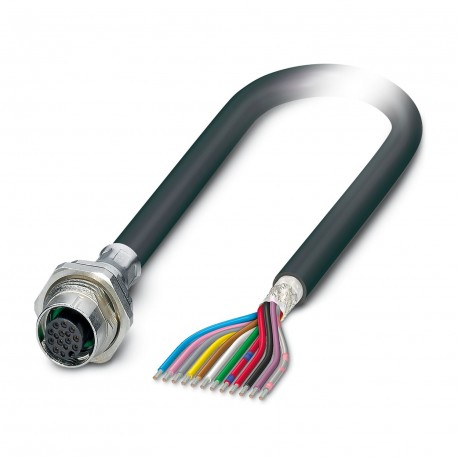

PHOENIX CONTACT SACCBP-FS-12CON-M16/2,0-PVCSCO SACCBP-FS-12CON-M16/2,0-PVCSCO 1442191 PHOENIX CONTACT Flush-type connector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SACCBP-FS-12CON-M16/2,0-PVCSCO 1442191 PHOENIX CONTACT Flush-type connector

SACCBP-FS-12CON-M16/2,0-PVCSCO

1442191

PHOENIX CONTACT

1 Pcs.

Flush-type connector Conect. plug. to be apar. wall poster., Universal, 12-pole, PVC/PVC, black RAL 9005, shielded, Built-in mounting female, straight, M12-SPEEDCON, coding: A , free cable end, Rear mounting, M16 x 1.5, Cable connection, cable length: 2 m, 0.14 mm², black PVC, Alternative product according to RoHS II without exception 6c (Pb< 0.1%) item code: 1239766 Device connector rear mounting, Universal, 12-position, PVC/PVC, black RAL 9005, shielded, Socket, straight, M12-SPEEDCON, coding: A, on free cable end, Rear mounting, M16 x 1.5, Cable connection, cable length: 2 m, 0.14 mm2, PVC black, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1239766

Cables > Circular connector, mounting (with cable)
Field Device Connectors (FDC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Notes
Notes on operationThe electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration.
Order information:Lock nut is included in the scope of delivery
Mounting
Mounting typeRear mounting M16 x 1.5 Thread with flat nut
Assembly noteThread with flat nut
Product properties
Product typeCircular connectors (device side)
Sensor typeUniversal
Number of positions12
No. of cable outlets1
Shieldedyes
CodingA
Thread typeM12
Data management status
Article revision09
Insulation characteristics
Overvoltage categoryII
Degree of pollution3
Material specifications
Flammability rating according to UL 94V0
Seal materialFKM
Contact materialCuZn
Contact surface materialAu
Contact carrier materialPA 6.6
Material for screw connectionZinc die-cast, nickel-plated
Outer sheath, materialPVC
Conductor materialTin-plated Cu litz wires
Electrical properties
Rated surge voltage0.8 kV
Contact resistance≤ 3 mΩ
Insulation resistance≥ 100 MΩ
Nominal voltage UN30 V
Nominal current IN1.5 A
Max. conductor resistance142 Ω/km
Connection data
Conductor connection
Connection methodCable connection
Contact connection typeSocket
Conductor cross section6x 2x 0.14 mm²
Tightening torque3 Nm ... 4 Nm (Installation-side)
Mechanical properties
Mechanical data
Insertion/withdrawal cycles> 100
Connector
Connection 1
Head designSocket
Head cable outletstraight
Head thread typeM12
Head locking typeSPEEDCON
CodingA
Connection 2
Head designfree cable end
Cable/line
Cable length2 m
Cable typePVC black
Short symbolPVC
Signal type/categoryUniversal
External cable diameter7.00 mm ±0.03 mm
Outer sheath, materialPVC
External sheath, colorblack RAL 9005
Wire diameter incl. insulation1 mm ±0.05 mm
Single wire, colorwhite-brown, green-yellow, gray-pink, blue-red, black-violet, gray/pink-red/blue
Cable cross section6x 2x 0.14 mm²
Material, inner sheathPVC
Conductor materialTin-plated Cu litz wires
Conductor structure signal line18x 0.10 mm
Material wire insulationPVC
Thickness, insulation0.21 mm
Overall twistSix pairs around the filler to the core
ShieldingTinned copper braided shield
Optical shield covering85 %
Nominal voltage, cable300 V
Test voltage, cable1500 V AC
Cable resistance142 Ω/km (at 20 °C)
Smallest bending radius, fixed installation42 mm
Smallest bending radius, movable installation105 mm
Resistance to oilin accordance with DIN EN 60811-404
Flame resistanceIEC 60332-1-2, IEC 60332-1, FT1, VW-1
Other resistanceHydrolysis and microbe resistant as per VDE 0282 section 10
Ambient temperature (operation)-40 °C ... 85 °C (cable, fixed installation)
-25 °C ... 85 °C (Cable, flexible installation)
Environmental and real-life conditions
Ambient conditions
Degree of protectionIP67 (When plugged in)
IP65 (When plugged in)
IP65/IP67
Ambient temperature (operation)-25 °C ... 85 °C (Plug / socket)
-40 °C ... 85 °C (without mechanical actuation)
-25 °C ... 85 °C (Cable, flexible installation)
-40 °C ... 85 °C (cable, fixed installation)
Resistance to oilin accordance with DIN EN 60811-404
Standards and regulations
Flame resistanceIEC 60332-1-2, IEC 60332-1, FT1, VW-1
Resistance to oilin accordance with DIN EN 60811-404
Other resistanceHydrolysis and microbe resistant as per VDE 0282 section 10
Standard designationM12 connector
Standards/specificationsIEC 61076-2-101

ETIM for 1442191 Connectors (EC002635)
Feature Name Feature Value
Contact type (EF001587) Other
Number of data contacts (EF012232) 0
Number of power contacts (EF012216) 0
Number of control contacts (EF012217) 12
Type of housing (EF006980) Straight
Rated current In (EF008250) 1.5 A
Ambient temperature (EF002386) -25 °C
Rated voltage (EF000228) 30 V
Over voltage category (EF006785) II
Pollution degree (EF006786) 3
Material of contact surface (EF004020) Gold
Housing material (EF001596) Plastic
Material thread ring (EF012304) Other
Type of locking (EF000208) Other
Inflammability class of insulation material according to UL94 (EF002521) V0
With protective conductor (EF007468) No
Degree of protection (IP), mounted (EF007466) IP67
Min. number of insertion cycles (EF012212) 100
Screened (EF000881) Yes
With status indication (EF001602) No
