PHOENIX CONTACT SACCBP-FS-12CON-M16/1,0-PVCSCO SACCBP-FS-12CON-M16/1,0-PVCSCO 1442188 PHOENIX CONTACT Flush-type connector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SACCBP-FS-12CON-M16/1,0-PVCSCO 1442188 PHOENIX CONTACT Flush-type connector

SACCBP-FS-12CON-M16/1,0-PVCSCO

1442188

PHOENIX CONTACT

1 Pcs.

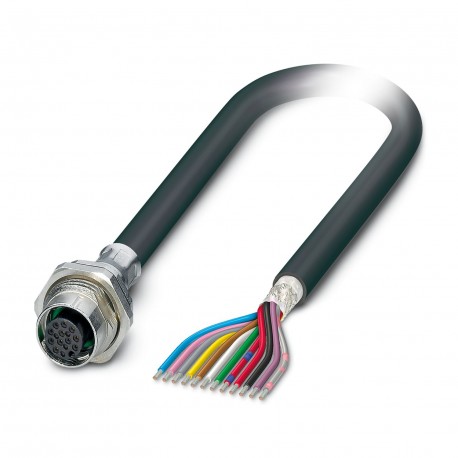

Flush-type connector Conect. plug. to be apar. poster wall, Universal, 12-pole, PVC/PVC, black RAL 9005, shielded, Built-in mounting female, straight, M12-SPEEDCON, coding: A, at free cable end, Rear mounting, M16 x 1.5, Terminal connection, cable length: 1 m, 0.14 mm², black PVC, Alternative product according to RoHS II without exception 6c (Pb< 0.1%) item code: 1239765

Cables > Circular connector, mounting (with cable)
Field Device Connectors (FDC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1442188
Packing unit1 pc
NoteMade to Order (non-returnable)
Catalog pagePage 46 (C-2-2017)
GTIN4046356533379
Weight per Piece (excluding packing)92.600 g
Custom tariff number85444290
Country of originDE (Germany)

Dimensions

Length of cable1 m
Stripping length of the free conductor end35 mm

Ambient conditions

Ambient temperature (operation)-25 °C ... 85 °C (Plug / socket)
Degree of protectionIP67

General

NoteThe electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration.
Rated current at 40°C1.5 A
Rated voltage30 V
Rated surge voltage0.8 kV
Number of positions12
Insulation resistance≥ 100 MΩ
CodingA - standard
Standards/regulationsM12 connector IEC 61076-2-101
Signal type/categoryUniversal
Status displayNo
Overvoltage categoryII
Degree of pollution3
Connection methodIndividual wires
Insertion/withdrawal cycles> 100
Torque3 Nm ... 4 Nm (Installation-side)
Mounting typeRear mounting M16 x 1.5 Thread with flat nut

Material

Flammability rating according to UL 94V0
Contact materialCuZn
Contact surface materialAu
Contact carrier materialPA 6.6
Material, knurlsZinc die-cast, nickel-plated
Sealing materialFKM

Cable

Cable typePVC black
Cable type (abbreviation)PVC
Conductor cross section0.14 mm²
AWG signal line26
Conductor structure signal line7x 0.16 mm
Core diameter including insulation1.1 mm ±0.05 mm
Thickness, insulation0.21 mm
Wire colorsWhite-brown, green-yellow, gray-pink, blue-red, black-violet, gray/pink-red/blue
Overall twistSix pairs around the filler to the core
ShieldingTinned copper braided shield
Optical shield covering85 %
External sheath, colorblack RAL 9005
External cable diameter8.50 mm
Number of bending cycles2000000
Bending radius85 mm
Traversing path10 m
Traversing rate3 m/s
Acceleration10 m/s²
Outer sheath, materialPVC
Material, inner sheathPVC
Material conductor insulationPVC
Conductor materialTin-plated Cu litz wires
Standards/specificationsM12 connector IEC 61076-2-101
Conductor resistance142 Ω/km
Flame resistanceDIN VDE 0472 part 804, test type B
Resistance to oilDIN VDE 0472 Part 803, test type B
Other resistanceHydrolysis and microbe resistant as per VDE 0282 section 10
Ambient temperature (operation)-40 °C ... 85 °C (cable, fixed installation)
-25 °C ... 85 °C (cable, flexible installation)

Standards and Regulations

Standard designationM12 connector
Standards/regulationsIEC 61076-2-101
Flame resistanceDIN VDE 0472 part 804, test type B
Resistance to oilDIN VDE 0472 Part 803, test type B
Other resistanceHydrolysis and microbe resistant as per VDE 0282 section 10
Flammability rating according to UL 94V0

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 1442188 Connectors (EC002635)
Feature Name Feature Value
Contact type (EF001587) Other
Number of data contacts (EF012232) 0
Number of power contacts (EF012216) 0
Number of control contacts (EF012217) 12
Type of housing (EF006980) Straight
Rated current In (EF008250) 1.5 A
Ambient temperature (EF002386) -25 °C
Rated voltage (EF000228) 30 V
Over voltage category (EF006785) II
Pollution degree (EF006786) 3
Material of contact surface (EF004020) Gold
Housing material (EF001596) Plastic
Material thread ring (EF012304) Other
Type of locking (EF000208) Other
Inflammability class of insulation material according to UL94 (EF002521) V0
With protective conductor (EF007468) No
Degree of protection (IP), mounted (EF007466) IP67
Min. number of insertion cycles (EF012212) 100
Screened (EF000881) Yes
With status indication (EF001602) No

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
