PHOENIX CONTACT SACC-E-M5FS-4CON-M5/0,5 SACC-E-M5FS-4CON-M5/0,5 1530618 PHOENIX CONTACT Flush-type connector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SACC-E-M5FS-4CON-M5/0,5 1530618 PHOENIX CONTACT Flush-type connector

SACC-E-M5FS-4CON-M5/0,5

1530618

PHOENIX CONTACT

1 Pcs.

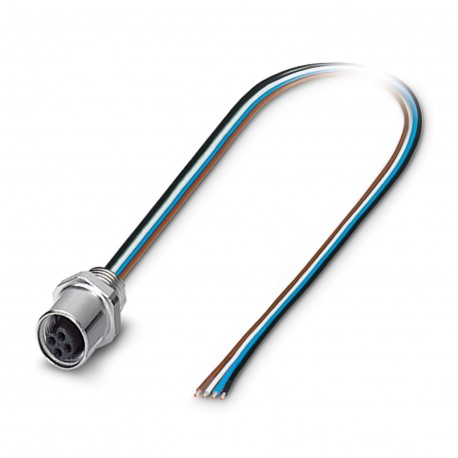

Flush-type connector Sensor/actuator mount female, 4-pole, M5, front wall mount/bolt mount, with M5 thread, with 0.5 m TPE conductor, 4x0.14mm² Device connector front mounting, 4-position, Socket, straight, M5, Front mounting, M5 x 0.5, Individual wires, cable length: 0.5 m, 0.14 mm2, TPE litz wire

Cables > Circular connector, mounting (with cable)
Field Device Connectors (FDC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Mounting
Mounting typeFront mounting M5 x 0.5
Product properties
Product typeCircular connectors (device side)
Number of positions4
No. of cable outlets1
Shieldedno
CodingA
Thread typeM5
Data management status
Article revision01
Insulation characteristics
Overvoltage categoryII
Degree of pollution3
Material specifications
Flammability rating according to UL 94HB
Seal materialViton
Contact materialCuSn
Contact surface materialAu
Contact carrier materialPA 6.6
Material for screw connectionBrass, nickel-plated
Electrical properties
Contact resistance≤ 3 mΩ
Insulation resistance≥ 100 MΩ
Nominal voltage UN48 V AC
60 V DC
Nominal current IN1 A
Test voltage800 V
Connection data
Conductor connection
Connection methodIndividual wires
Contact connection typeSocket
Conductor cross section0.14 mm²
Connector
Connection 1
Head designSocket
Head cable outletstraight
Head thread typeM5
Cable/line
Cable length0.5 m
Cable typeTPE litz wire
Single wire, colorbrown, white, blue, black
Cable cross section0.14 mm²
Conductor structure signal line18x 0.10 mm
AWG signal line26
Material wire insulationTPE
Ambient temperature (operation)-25 °C ... 80 °C (cable, fixed installation)
Environmental and real-life conditions
Ambient conditions
Degree of protectionIP67
IP67
Ambient temperature (operation)-25 °C ... 80 °C (cable, fixed installation)
-25 °C ... 85 °C (Plug)
Standards and regulations
M5
Standard designationM5 connector
Standards/specificationsIEC 61076-2-105

ETIM for 1530618 Connectors (EC002635)
Feature Name Feature Value
Contact type (EF001587) Other
Number of data contacts (EF012232) 0
Number of power contacts (EF012216) 0
Number of control contacts (EF012217) 4
Type of housing (EF006980) Straight
Rated current In (EF008250) 1 A
Ambient temperature (EF002386) -25 °C
Rated voltage (EF000228) 48 V
Over voltage category (EF006785) II
Pollution degree (EF006786) 3
Material of contact surface (EF004020) Gold
Housing material (EF001596) Plastic
Material thread ring (EF012304) Other
Type of locking (EF000208) Other
Inflammability class of insulation material according to UL94 (EF002521) HB
With protective conductor (EF007468) No
Degree of protection (IP), mounted (EF007466) IP67
Screened (EF000881) No
With status indication (EF001602) No

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
