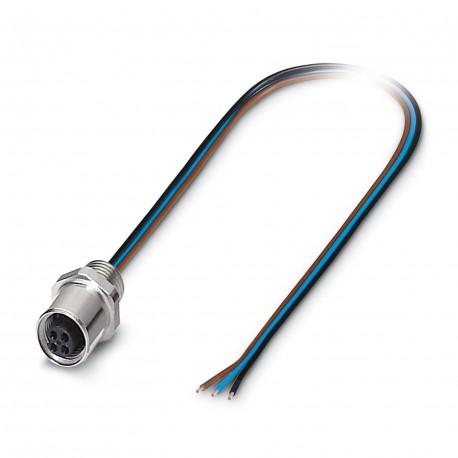

SACC-E-M5FS-3CON-M5/0,5 1530605 PHOENIX CONTACT Flush-type connector
SACC-E-M5FS-3CON-M5/0,5
1530605
PHOENIX CONTACT
1 Pcs.
Flush-type connector
Sensor/Actuator Mount Female, 3-Pole, M5, Front Wall Mount/Bolt Mount, with M5 Thread, with 0.5 m TPE Conductor, 3x0.14mm²
Device connector front mounting, 3-position, Socket, straight, M5, Front mounting, M5 x 0.5, Individual wires, cable length: 0.5 m, 0.14 mm2, TPE litz wire
Cables > Circular connector, mounting (with cable)
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Mounting
| Mounting type | Front mounting M5 x 0.5 |
Product properties
| Product type | Circular connectors (device side) |
| Number of positions | 3 |
| No. of cable outlets | 1 |
| Shielded | no |
| Coding | A |
| Thread type | M5 |
| Data management status | |
| Article revision | 01 |
| Insulation characteristics | |
| Overvoltage category | II |
| Degree of pollution | 3 |
Material specifications
| Flammability rating according to UL 94 | HB |
| Seal material | Viton |
| Contact material | CuSn |
| Contact surface material | Au |
| Contact carrier material | PA 6.6 |
| Material for screw connection | Brass, nickel-plated |
Electrical properties
| Contact resistance | ≤ 3 mΩ |
| Insulation resistance | ≥ 100 MΩ |
| Nominal voltage UN | 48 V AC |
| 60 V DC | |
| Nominal current IN | 1 A |
| Test voltage | 800 V |
Connection data
| Conductor connection | |
| Connection method | Individual wires |
| Contact connection type | Socket |
| Conductor cross section | 0.14 mm² |
Connector
| Connection 1 | |
| Head design | Socket |
| Head cable outlet | straight |
| Head thread type | M5 |
Cable/line
| Cable length | 0.5 m |
| Cable type | TPE litz wire |
| Single wire, color | brown, blue, black |
| Cable cross section | 0.14 mm² |
| Conductor structure signal line | 18x 0.10 mm |
| AWG signal line | 26 |
| Material wire insulation | TPE |
| Ambient temperature (operation) | -25 °C ... 80 °C (cable, fixed installation) |
Environmental and real-life conditions
| Ambient conditions | |
| Degree of protection | IP67 |
| IP67 | |
| Ambient temperature (operation) | -25 °C ... 80 °C (cable, fixed installation) |
| -25 °C ... 85 °C (Plug) | |
Standards and regulations
| M5 | |
| Standard designation | M5 connector |
| Standards/specifications | IEC 61076-2-105 |
| Feature Name | Feature Value |
|---|---|
| Contact type (EF001587) | Other |
| Number of data contacts (EF012232) | 0 |
| Number of power contacts (EF012216) | 0 |
| Number of control contacts (EF012217) | 3 |
| Type of housing (EF006980) | Straight |
| Rated current In (EF008250) | 1 A |
| Ambient temperature (EF002386) | -25 °C |
| Rated voltage (EF000228) | 48 V |
| Over voltage category (EF006785) | II |
| Pollution degree (EF006786) | 3 |
| Material of contact surface (EF004020) | Gold |
| Housing material (EF001596) | Plastic |
| Material thread ring (EF012304) | Other |
| Type of locking (EF000208) | Other |
| Inflammability class of insulation material according to UL94 (EF002521) | HB |
| With protective conductor (EF007468) | No |
| Degree of protection (IP), mounted (EF007466) | IP67 |
| Screened (EF000881) | No |
| With status indication (EF001602) | No |
