View larger
Images are for illustrative purposes only. Please refer to data sheet for details

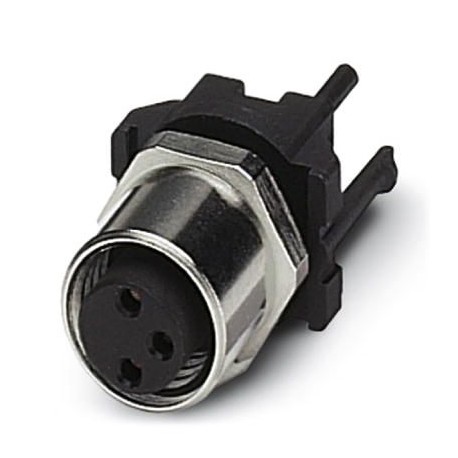

SACC-DSIV-M 8FS-3CON-L180-06 1524776 PHOENIX CONTACT Flush-type connector
SACC-DSIV-M 8FS-3CON-L180-06
1524776
PHOENIX CONTACT
20 Pcs.
Flush-type connector
Conect. plug. to be apar. wall poster., 3-pole, Female connection, straight, M8, coding: A, Rear mount, M8 x 1, Wave solder
Connectors > Circular connector, mounting (PCB)
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1524776 |
|---|---|
| Packing unit | 20 pc |
| Minimum order quantity | 20 pc |
| Catalog page | Page 230 (C-2-2013) |
| GTIN | 4017918950101 |
| Weight per Piece (excluding packing) | 4.720 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
General
| Rated current at 40°C | 4 A |
|---|---|
| Rated voltage | 50 V AC |
| 60 V DC | |
| Number of positions | 3 |
| Insulation resistance | ≥ 100 MΩ |
| Coding | A - standard |
| Standards/regulations | M8 connector IEC 61076-2-104 |
| Status display | No |
| Overvoltage category | II |
| Degree of pollution | 3 |
| Connection method | Solder pins |
| Mounting type | Rear mounting M8 x 1 With locking nut |
Material
| Flammability rating according to UL 94 | HB |
|---|---|
| Contact material | CuSn |
| Contact surface material | Au |
| Contact carrier material | PA 6.6 |
| Material, knurls | Nickel-plated brass |
| Sealing material | NBR |
Standards and Regulations
| Standard designation | M8 connector |
|---|---|
| Standards/regulations | IEC 61076-2-104 |
| Flammability rating according to UL 94 | HB |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 25; |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027140815eCl@ss 4.127140815eCl@ss 5.027143423eCl@ss 5.127143400eCl@ss 6.027279200eCl@ss 7.027440103eCl@ss 8.027440103eCl@ss 9.027440102
| Feature Name | Feature Value |
|---|---|
| Type of plug-in contact, outer side (EF005528) | Female (bus) |
| Mounting method (EF000003) | Back wall mounting |
| Screw-in thread (EF012303) | M8 |
| With shield connection (EF002535) | No |
| Number of poles (EF001391) | 3 |
| Number of control contacts (EF012217) | 3 |
| With PE-connection (EF005600) | No |
| Housing material (EF001596) | Brass |
| Coating housing (EF001601) | Nickel-plated |
| Material of contact surface (EF004020) | Other |
| Inflammability class of insulation material according to UL94 (EF002521) | HB |
| Degree of protection (IP), mounted (EF007466) | IP67 |
| Ambient temperature (EF002386) | 85 °C |
| Operating temperature (EF002393) | -25 °C |
| Rated current In (EF008250) | 4 A |
| With thread (EF003723) | Yes |
