View larger
Images are for illustrative purposes only. Please refer to data sheet for details

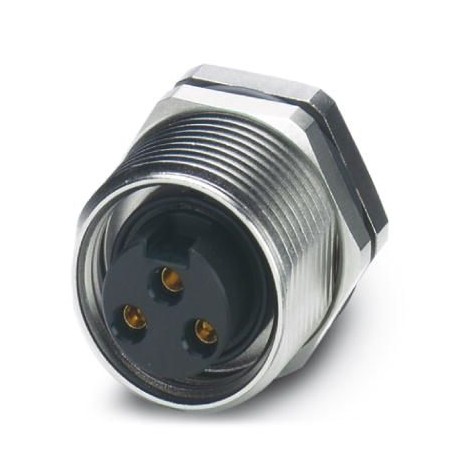

SACC-DSI-MINFS-5CON-M26 PCB 1457775 PHOENIX CONTACT Flush-type connector
SACC-DSI-MINFS-5CON-M26 PCB
1457775
PHOENIX CONTACT
1 Pcs.
Flush-type connector
Built-in mounting female for sensors/actuators, 5 poles, 7/8", printed circuit board mounting with M26 clamping thread
Connectors > Sensor-actuator connector chassis
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1457775 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 267 (C-2-2013) |
| GTIN | 4046356616966 |
| Weight per Piece (excluding packing) | 65.100 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
General
| Rated current at 40°C | 9 A |
|---|---|
| Rated voltage | 250 V |
| Number of positions | 5 |
| Insulation resistance | ≥ 100 MΩ |
| Coding | A - standard |
| Status display | No |
| Overvoltage category | II |
| Degree of pollution | 3 |
| Connection method | Solder pins |
| Mounting type | PCB mounting M26 |
Material
| Flammability rating according to UL 94 | HB |
|---|---|
| Contact material | CuZn |
| Contact surface material | Au |
| Contact carrier material | PUR |
| Material, knurls | Zinc die-cast, nickel-plated |
| Sealing material | Viton |
Standards and Regulations
| Connection in acc. with standard | CUL |
|---|---|
| Flammability rating according to UL 94 | HB |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 25; |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
