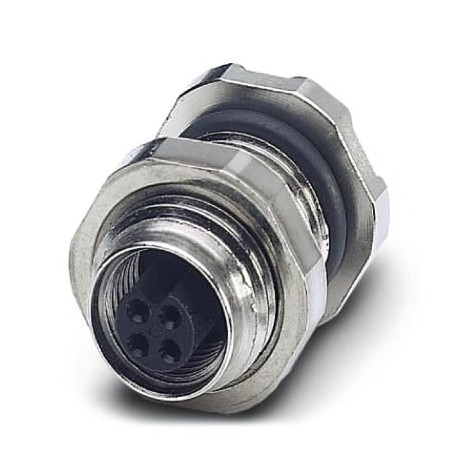

SACC-DSI-M5FS-3CON-L180 1530647 PHOENIX CONTACT Flush-type connector
SACC-DSI-M5FS-3CON-L180
1530647
PHOENIX CONTACT
20 Pcs.
Flush-type connector
Sensor/actuator mounting female, 3-pole, M5, backwall mount/bolt mount, with straight weld connection
Connectors > Circular connector, mounting (PCB)
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1530647 |
|---|---|
| Packing unit | 20 pc |
| Minimum order quantity | 20 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 224 (C-2-2013) |
| GTIN | 4046356024440 |
| Weight per Piece (excluding packing) | 4.230 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
General
| Rated current at 40°C | 1 A |
|---|---|
| Rated voltage | 60 V |
| Number of positions | 3 |
| Insulation resistance | ≥ 100 MΩ |
| Coding | A - standard |
| Standards/regulations | M5 connector IEC 61076-2-105 |
| Status display | No |
| Overvoltage category | II |
| Degree of pollution | 3 |
| Test voltage | 800 V |
| Connection method | Solder pins |
| Mounting type | Rear mounting M5 x 0.5 With locking nut |
Material
| Flammability rating according to UL 94 | HB |
|---|---|
| Contact material | CuSn |
| Contact surface material | Au |
| Contact carrier material | PA 6.6 |
| Material, knurls | Nickel-plated brass |
| Sealing material | Viton |
Standards and Regulations
| Standard designation | M5 connector |
|---|---|
| Standards/regulations | IEC 61076-2-105 |
| Flammability rating according to UL 94 | HB |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 25; |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
