View larger
Images are for illustrative purposes only. Please refer to data sheet for details

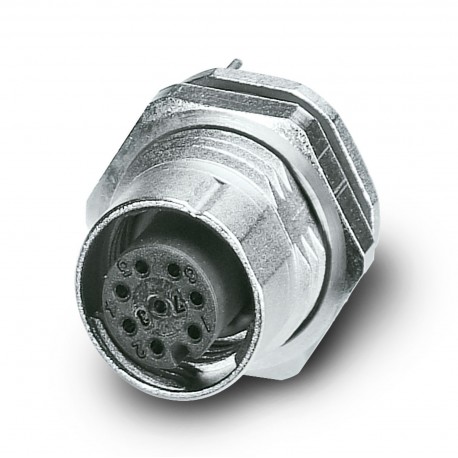

SACC-DSI-M12FS-8CON-M16 SH 1441930 PHOENIX CONTACT Panel feed-through
SACC-DSI-M12FS-8CON-M16 SH
1441930
PHOENIX CONTACT
20 Pcs.
Panel feed-through
Conect. plug. to be apar. poster wall, 8-pole, Connecting female, M12, coding: A, Rear mounting, M16 x 1.5, Wave soldering, Alternative product according to RoHS II without exception 6c (Pb< 0.1%) art.code: 1239752
Device connector rear mounting, 8-position, Socket, M12, coding: A, Rear mounting, M16 x 1.5, Wave soldering, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1239752
Connectors > Circular connector, mounting (PCB)
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Notes
| Notes on operation | The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration. |
| Order information: | Lock nut is included in the scope of delivery |
Mounting
| Mounting type | Rear mounting M16 x 1.5 With flat nut |
| Assembly note | With flat nut |
Product properties
| Product type | Circular connectors (device side) |
| Number of positions | 8 |
| Shielded | yes |
| Coding | A |
| Thread type | M12 |
| Data management status | |
| Article revision | 08 |
| Insulation characteristics | |
| Overvoltage category | II |
| Degree of pollution | 3 |
Dimensions
| Length of the solder pin | 6 mm |
| 6 mm |
Material specifications
| Flammability rating according to UL 94 | V0 |
| Seal material | NBR |
| Contact material | CuZn |
| Contact surface material | Au |
| Contact carrier material | PA 6.6 |
| Material for screw connection | Zinc die-cast, nickel-plated |
Electrical properties
| Rated surge voltage | 0.8 kV |
| Contact resistance | ≤ 3 mΩ |
| Insulation resistance | ≥ 100 MΩ |
| Nominal voltage UN | 30 V |
| Nominal current IN | 2 A |
Connection data
| Conductor connection | |
| Connection method | Wave soldering |
| Contact connection type | Socket |
| Tightening torque | 3 Nm ... 4 Nm (Installation-side) |
Mechanical properties
| Mechanical data | |
| Insertion/withdrawal cycles | > 100 |
Connector
| Connection 1 | |
| Head design | Socket |
| Head thread type | M12 |
| Coding | A |
Cable/line
| Ambient temperature (operation) | -40 °C ... 85 °C (cable, fixed installation) |
| -25 °C ... 85 °C (Cable, flexible installation) |
Environmental and real-life conditions
| Ambient conditions | |
| Degree of protection | IP67 (When plugged in) |
| IP65 (When plugged in) | |
| IP65/IP67 | |
| Ambient temperature (operation) | -25 °C ... 85 °C (Plug / socket) |
| -40 °C ... 85 °C (without mechanical actuation) | |
| -25 °C ... 85 °C (Cable, flexible installation) | |
| -40 °C ... 85 °C (cable, fixed installation) | |
Standards and regulations
| M12 | |
| Standard designation | M12 connector |
| Standards/specifications | IEC 61076-2-101 |
| Feature Name | Feature Value |
|---|---|
| Type of plug-in contact, outer side (EF005528) | Female (bus) |
| Mounting method (EF000003) | Back wall mounting |
| Screw-in thread (EF012303) | M16 |
| With shield connection (EF002535) | Yes |
| Number of poles (EF001391) | 8 |
| Number of control contacts (EF012217) | 8 |
| With PE-connection (EF005600) | No |
| Coating housing (EF001601) | Nickel-plated |
| Material of contact surface (EF004020) | Other |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Min. number of insertion cycles (EF012212) | 100 |
| Degree of protection (IP), mounted (EF007466) | IP65/IP67 |
| Ambient temperature (EF002386) | 85 °C |
| Operating temperature (EF002393) | -25 °C |
| Rated current In (EF008250) | 2 A |
| With thread (EF003723) | Yes |
