View larger
Images are for illustrative purposes only. Please refer to data sheet for details

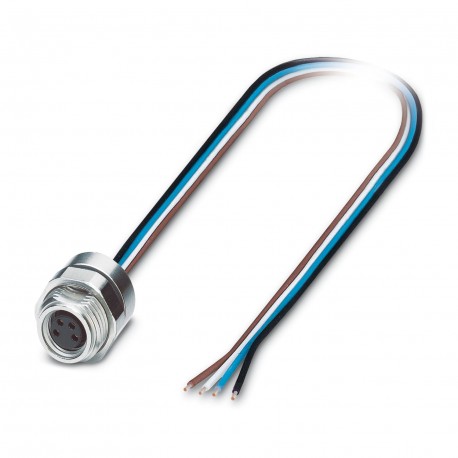

SACC-DSI-M 8FS-4CON-M12/0,5 1453452 PHOENIX CONTACT Flush-type connector
SACC-DSI-M 8FS-4CON-M12/0,5
1453452
PHOENIX CONTACT
1 Pcs.
Flush-type connector
Conect. plug. to be apar. wall poster., 4-pole, Female connection, straight, M8, Rear mounting, M12 x 1, Single stranded wires, cable length: 0.5 m, 0.25 mm², PVC conductor
Device connector rear mounting, 4-position, Socket, straight, M8, Rear mounting, M12 x 1, Individual wires, cable length: 0.5 m, 0.25 mm2, PVC litz wire
Cables > Circular connector, mounting (with cable)
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Mounting
| Mounting type | Rear mounting M12 x 1 With flat nut |
| Assembly note | With flat nut |
Product properties
| Product type | Circular connectors (device side) |
| Number of positions | 4 |
| No. of cable outlets | 1 |
| Shielded | no |
| Coding | A |
| Thread type | M8 |
| Data management status | |
| Article revision | 03 |
| Insulation characteristics | |
| Overvoltage category | II |
| Degree of pollution | 3 |
Material specifications
| Flammability rating according to UL 94 | HB |
| Seal material | FKM |
| Contact material | Cu alloy |
| Contact surface material | Au |
| Contact carrier material | PUR/PA 6.6 |
| Material for screw connection | Brass, nickel-plated |
| Conductor material | Tin-plated Cu litz wires |
Electrical properties
| Rated surge voltage | 1.5 kV |
| Contact resistance | ≤ 3 mΩ |
| Insulation resistance | ≥ 100 MΩ |
| Nominal voltage UN | 48 V AC |
| 60 V DC | |
| Nominal current IN | 4 A |
| Max. conductor resistance | 80 Ω/km |
Connection data
| Conductor connection | |
| Connection method | Individual wires |
| Contact connection type | Socket |
| Conductor cross section | 0.25 mm² |
| Tightening torque | 1 Nm ... 1.5 Nm (Installation-side) |
Connector
| Connection 1 | |
| Head design | Socket |
| Head cable outlet | straight |
| Head thread type | M8 |
Cable/line
| Cable length | 0.5 m |
| Cable type | PVC litz wire |
| Wire diameter incl. insulation | 1.5 mm ±0.1 mm |
| Single wire, color | brown, white, blue, black |
| Cable cross section | 0.25 mm² |
| Conductor material | Tin-plated Cu litz wires |
| Conductor structure signal line | 7x 0.20 mm |
| AWG signal line | 24 |
| Material wire insulation | PVC / UL |
| Thickness, insulation | 0.21 mm |
| Nominal voltage, cable | 300 V |
| Test voltage, cable | 2000 V AC |
| Cable resistance | ≥ 80 Ω/km |
| Cable insulation resistance | ≥ 20 MΩ*km |
| Ambient temperature (operation) | -40 °C ... 105 °C (cable, fixed installation) |
| -10 °C ... 105 °C (Cable, flexible installation) |
Environmental and real-life conditions
| Ambient conditions | |
| Degree of protection | IP67 |
| IP67 | |
| Ambient temperature (operation) | -25 °C ... 85 °C (Socket) |
| -40 °C ... 105 °C (cable, fixed installation) | |
| -10 °C ... 105 °C (Cable, flexible installation) | |
Standards and regulations
| M8 | |
| Standard designation | M8 connector |
| Standards/specifications | IEC 61076-2-104 |
| Feature Name | Feature Value |
|---|---|
| Contact type (EF001587) | Other |
| Number of data contacts (EF012232) | 0 |
| Number of power contacts (EF012216) | 0 |
| Number of control contacts (EF012217) | 4 |
| Type of housing (EF006980) | Straight |
| Rated current In (EF008250) | 4 A |
| Ambient temperature (EF002386) | -25 °C |
| Rated voltage (EF000228) | 48 V |
| Over voltage category (EF006785) | II |
| Pollution degree (EF006786) | 3 |
| Material of contact surface (EF004020) | Gold |
| Housing material (EF001596) | Plastic |
| Material thread ring (EF012304) | Other |
| Type of locking (EF000208) | Other |
| Inflammability class of insulation material according to UL94 (EF002521) | HB |
| With protective conductor (EF007468) | No |
| Degree of protection (IP), mounted (EF007466) | IP67 |
| Screened (EF000881) | No |
| With status indication (EF001602) | No |
