View larger
Images are for illustrative purposes only. Please refer to data sheet for details

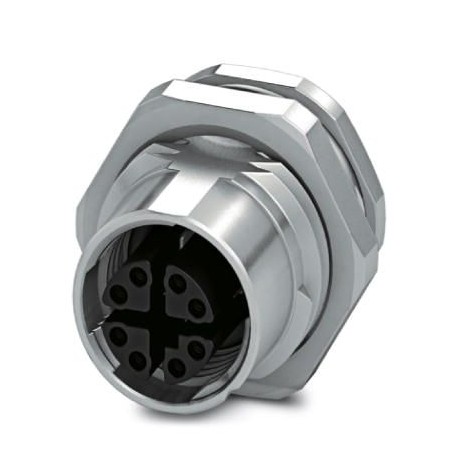

SACC-DSI-FSX-8CON-PG9-L180 SCO 1404741 PHOENIX CONTACT Flush-type socket
SACC-DSI-FSX-8CON-PG9-L180 SCO
1404741
PHOENIX CONTACT
20 Pcs.
Flush-type socket
Conect. plug. to be apar. poster wall, CAT6A Ethernet (10 GBit/s), 8-pole-SPEEDCON, Rear mount, M12 x 1, Wave soldering, Alternative product according to RoHS II without exception 6c (Pb< 0.1%) Item code: 1238707
Connectors > Circular connector, mounting (PCB)
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1404741 |
|---|---|
| Packing unit | 20 pc |
| Minimum order quantity | 20 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 91 (C-2-2013) |
| GTIN | 4046356737029 |
| Weight per Piece (excluding packing) | 15.750 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
Ambient conditions
| Degree of protection | IP67 (When plugged in) |
|---|---|
| Ambient temperature (operation) | -40 °C ... 85 °C |
General data
| Rated current at 40°C | 0.5 A (Data) |
|---|---|
| Rated voltage | 50 V AC |
| 60 V DC | |
| Number of positions | 8 |
| Signal type/category | Ethernet CAT6A |
| Standards/regulations | M12 connector IEC 61076-2-109 |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Alternative short product description | Ethernet flush-type socket |
| Connection method | Solder-in connection |
| Contact material | CuZn |
| Contact carrier material | PPA |
| Contact surface material | gold-plated |
Standards and Regulations
| Standard designation | M12 connector |
|---|---|
| Standards/regulations | IEC 61076-2-109 |
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.0272607xxeCl@ss 4.127260701eCl@ss 5.027260701eCl@ss 5.127260700eCl@ss 6.027279200eCl@ss 7.027440103eCl@ss 8.027440103eCl@ss 9.027440102
| Feature Name | Feature Value |
|---|---|
| Contact type (EF001587) | Other |
| Number of data contacts (EF012232) | 0 |
| Number of power contacts (EF012216) | 0 |
| Number of control contacts (EF012217) | 8 |
| Type of housing (EF006980) | Straight |
| Rated current In (EF008250) | 0.5 A |
| Ambient temperature (EF002386) | -40 °C |
| Rated voltage (EF000228) | 50 V |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 3 |
| Material of contact surface (EF004020) | Gold |
| Housing material (EF001596) | Other |
| Coating housing (EF001601) | Other |
| Material thread ring (EF012304) | Other |
| Type of locking (EF000208) | Other |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| With protective conductor (EF007468) | No |
| Degree of protection (IP), mounted (EF007466) | IP67 |
| Min. number of insertion cycles (EF012212) | 100 |
| Screened (EF000881) | Yes |
| With status indication (EF001602) | No |
