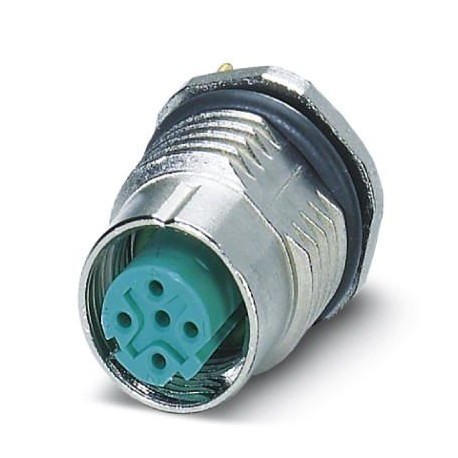

SACC-DSI-FSD-4CON-L180/SH TQ 1456527 PHOENIX CONTACT Flush-type connector
SACC-DSI-FSD-4CON-L180/SH TQ
1456527
PHOENIX CONTACT
20 Pcs.
Flush-type connector
Built-in mounting female for bus system, with water blue contact bracket, 4-pole, SPEEDCON M12, shielded, D-coded, rear wall mount/M16 threaded screw mount, with straight weld connection
Connectors > Circular connector, mounting (PCB)
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1456527 |
|---|---|
| Packing unit | 20 pc |
| Minimum order quantity | 20 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 90 (C-2-2013) |
| GTIN | 4046356617185 |
| Weight per Piece (excluding packing) | 14.210 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -20 °C ... 60 °C (cable, fixed installation) |
|---|---|
| Degree of protection | IP67 |
General
| Note | The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration. |
|---|---|
| Rated current at 40°C | 4 A |
| Rated voltage | 250 V |
| Rated surge voltage | 2.5 kV |
| Number of positions | 4 |
| Insulation resistance | ≥ 100 MΩ |
| Coding | D - data |
| Standards/regulations | M12 connector IEC 61076-2-101 |
| Status display | No |
| Overvoltage category | II |
| Degree of pollution | 3 |
| Connection method | Solder pins |
| Insertion/withdrawal cycles | ≥ 100 |
| Torque | 3 Nm ... 4 Nm (Installation-side) |
| Mounting type | Rear mounting Pg9 With flat nut |
Material
| Flammability rating according to UL 94 | V0 |
|---|---|
| Contact material | CuZn |
| Contact surface material | Ni/Au |
| Contact carrier material | PA 6.6 |
| Material, knurls | Zinc die-cast, nickel-plated |
| Sealing material | NBR |
Cable
| Standards/specifications | M12 connector IEC 61076-2-101 |
|---|---|
| Transmission characteristics (category) | CAT5 (IEC 11801:2002) |
Standards and Regulations
| Standard designation | M12 connector |
|---|---|
| Standards/regulations | IEC 61076-2-101 |
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027250313eCl@ss 4.127250313eCl@ss 5.027143423eCl@ss 5.127143400eCl@ss 6.027279200eCl@ss 7.027440103eCl@ss 8.027440103eCl@ss 9.027440102
| Feature Name | Feature Value |
|---|---|
| Type of plug-in contact, outer side (EF005528) | Female (bus) |
| Number of poles (EF001391) | 4 |
| Number of control contacts (EF012217) | 4 |
| With PE-connection (EF005600) | No |
| Housing material (EF001596) | Other |
| Material of contact surface (EF004020) | Nickel |
| Pollution degree (EF006786) | 3 |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Min. number of insertion cycles (EF012212) | 100 |
| Degree of protection (IP), mounted (EF007466) | IP67 |
| Operating temperature (EF002393) | -40 °C |
| Rated current In (EF008250) | 4 A |
