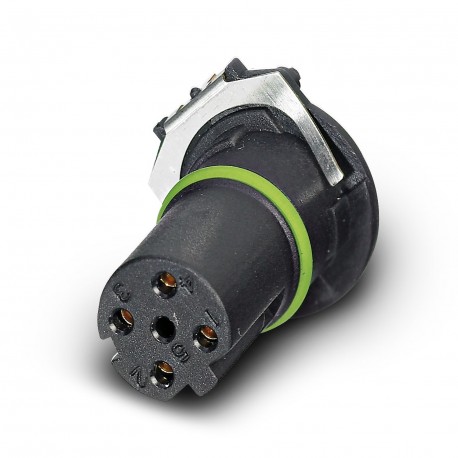

PHOENIX CONTACT SACC-CI-M12FSD-4CON-L180-THR SACC-CI-M12FSD-4CON-L180-THR 1551451 PHOENIX CONTACT Bus system flat-type plug View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SACC-CI-M12FSD-4CON-L180-THR 1551451 PHOENIX CONTACT Bus system flat-type plug

SACC-CI-M12FSD-4CON-L180-THR

1551451

PHOENIX CONTACT

60 Pcs.

Bus system flat-type plug Plug-in Mounting Connector, Ethernet / PROFINET CAT5 (100 MBit/s), 4-Pole, Female Connection, Straight, M12, Coding: D , Printed Circuit Board Mounting, THR Solder Connection, Alternative product according to RoHS II without exception 6c (Pb< 0.1%) Item code: 1237392 Contact carrier, Ethernet/PROFINET CAT5 (100 Mbps), 4-position, Socket, straight, M12, coding: D, PCB mounting, THR solder connection, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1237392

Connectors > Contact insert for circular connectors
Field Device Connectors (FDC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Notes
Notes on operationThe electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration.
Product properties
Product typeContact insert
ApplicationData
Signal
Sensor typeEthernet/PROFINET
Number of positions4
Seal presentyes
Shieldedyes
CodingD
Thread typeM12
Data management status
Article revision06
Insulation characteristics
Overvoltage categoryII
Degree of pollution3
Electrical properties
Rated surge voltage2.5 kV
Contact resistance≤ 3 mΩ
Insulation resistance≥ 100 MΩ
Nominal voltage UN250 V
Nominal current IN4 A
Transmission characteristics (category)CAT5 (IEC 11801:2002)
Connection data
Connection methodTHR solder connection
Interfaces
Signal type/categoryEthernet/PROFINET CAT5, 100 Mbps
Material specifications
Flammability rating according to UL 94V0
Seal materialFKM
Contact materialCuZn
Contact surface materialAu
Contact carrier materialPA 6T/66
Connector
Connection 1
Head designSocket
Head cable outletstraight
Head thread typeM12
CodingD
Cable/line
Signal type/categoryEthernet/PROFINET CAT5, 100 Mbps
Ambient temperature (operation)-40 °C ... 85 °C (cable, fixed installation)
-25 °C ... 85 °C (Cable, flexible installation)
Mechanical properties
Mechanical data
Insertion/withdrawal cycles> 100
Environmental and real-life conditions
Ambient conditions
Degree of protection (when plugged in)IP67 (correctly plugged in and locked)
Degree of protectionIP67 (correctly plugged in and locked)
IP67, when plugged in
Ambient temperature (operation)-25 °C ... 85 °C (Plug / socket)
-40 °C ... 85 °C (without mechanical actuation)
-25 °C ... 85 °C (Cable, flexible installation)
-40 °C ... 85 °C (cable, fixed installation)
Standards and regulations
M12
Standard designationM12 connector
Standards/specificationsIEC 61076-2-101
Mounting
Mounting typePCB mounting
Packaging specifications
Type of packagingTray

ETIM for 1551451 Connectors (EC003557)
Feature Name Feature Value
Number of poles (EF001391) 4

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
