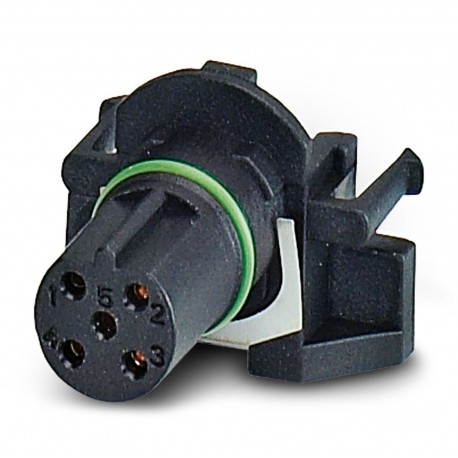

SACC-CI-M12FSB-5CON-L180 1551477 PHOENIX CONTACT Panel feed-through
SACC-CI-M12FSB-5CON-L180
1551477
PHOENIX CONTACT
20 Pcs.
Panel feed-through
Plug-in Mounting Connector, 5-Pole, Female Connection, Straight, M12, Coding: B, Printed Circuit Board Mounting, Solder Pins, 0.34 mm², Alternative product according to RoHS II without exception 6c (Pb< 0.1%) Item code: 1239984
Contact carrier, 5-position, Socket, straight, M12, coding: B, PCB mounting, Wave soldering, 0.34 mm2, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1239984
Connectors > Contact insert for circular connectors
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Notes
| Notes on operation | The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration. |
Product properties
| Product type | Contact insert |
| Application | Signal |
| Number of positions | 5 |
| Seal present | yes |
| Shielded | no |
| Coding | B |
| Thread type | M12 |
| Data management status | |
| Article revision | 04 |
| Insulation characteristics | |
| Overvoltage category | III |
| Degree of pollution | 3 |
Electrical properties
| Rated surge voltage | 1.5 kV |
| Contact resistance | ≤ 3 mΩ |
| Insulation resistance | ≥ 100 MΩ |
| Nominal voltage UN | 60 V |
| Nominal current IN | 4 A |
| Max. conductor resistance | 57.6 mΩ/m |
Connection data
| Connection method | Wave soldering |
Material specifications
| Flammability rating according to UL 94 | V0 |
| Seal material | FKM / EPDM |
| Contact material | CuZn |
| Contact surface material | Au |
| Contact carrier material | PA 6.6 |
Connector
| Connection 1 | |
| Head design | Socket |
| Head cable outlet | straight |
| Head thread type | M12 |
| Coding | B |
Cable/line
| Wire diameter incl. insulation | 1.2 mm ±0.07 mm |
| Cable cross section | 0.34 mm² |
| Conductor structure signal line | 7x 0.25 mm |
| Thickness, insulation | 0.21 mm |
| Nominal voltage, cable | 300 V |
| Test voltage, cable | 2000 V AC |
| Cable resistance | ≤ 57.6 mΩ/m |
| Cable insulation resistance | ≥ 20 MΩ*km |
| Ambient temperature (operation) | -40 °C ... 85 °C (cable, fixed installation) |
| -25 °C ... 85 °C (Cable, flexible installation) |
Mechanical properties
| Mechanical data | |
| Insertion/withdrawal cycles | > 100 |
Environmental and real-life conditions
| Ambient conditions | |
| Degree of protection | IP67 |
| IP67 | |
| Ambient temperature (operation) | -25 °C ... 85 °C (Plug / socket) |
| -40 °C ... 85 °C (without mechanical actuation) | |
| -25 °C ... 85 °C (Cable, flexible installation) | |
| -40 °C ... 85 °C (cable, fixed installation) | |
Standards and regulations
| M12 | |
| Standard designation | M12 connector |
| Standards/specifications | IEC 61076-2-101 |
Mounting
| Mounting type | PCB mounting |
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 5 |
