View larger
Images are for illustrative purposes only. Please refer to data sheet for details

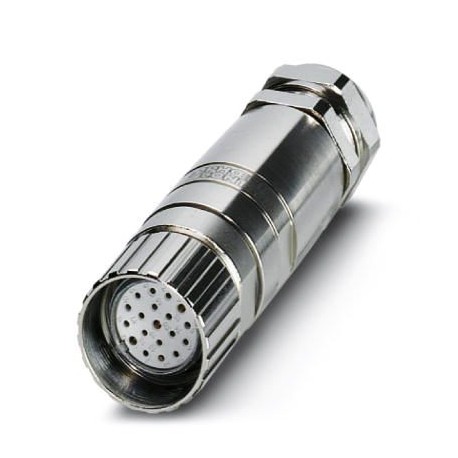

RC/TGGM/KVD/LBL 16+3 1685505 PHOENIX CONTACT Female connector
RC/TGGM/KVD/LBL 16+3
1685505
PHOENIX CONTACT
1 Pcs.
Female connector
M23 connection socket, 19 poles, straight, shielded, freely configurable, with solder connection, for cable outer diameters of 9.5 mm... 14.5 mm
Connectors > Housing for rectangular connectors
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1685505 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 316 (C-2-2017) |
| GTIN | 4017918878900 |
| Weight per Piece (excluding packing) | 146.800 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
General
| Rated voltage | 150 V |
|---|---|
| Total rated current | 10 A (with 1 mm² conductor cross section) |
| Number of positions | 19 |
| Note | The connector is designed for use on sensor/actuator boxes with an M23 plug-in connection. |
Master cable data/connection data
| Connection method | M23 screw locking |
|---|---|
| Conductor cross section max. (signal) | 1 mm² |
| Conductor cross section max. (energy) | 1.5 mm² |
| External cable diameter min. | 9.5 mm |
| External cable diameter max. | 14.5 mm |
Insulation material
| Housing material | GD-Zn |
|---|---|
| Housing surface material | Nickel-plated |
| Contact material | CuZn |
| Contact surface material | gold-plated |
| Contact carrier material | PBT |
| Sealing material | FPM |
Connection assignment
| Slot/position = pin = conductor color | 1 / 4 (A) = 15 = WH |
|---|---|
| 1 / 2 (B) = 7 = GY/PK | |
| 2 / 4 (A) = 5 = GN | |
| 2 / 2 (B) = 4 = RD/BU | |
| 3 / 4 (A) = 16 = YE | |
| 3 / 2 (B) = 8 = WH/GN | |
| 4 / 4 (A) = 3 = GY | |
| 4 / 2 (B) = 14 = BN/GN | |
| 5 / 4 (A) = 17 = PK | |
| 5 / 2 (B) = 9 = WH/YE | |
| 6 / 4 (A) = 2 = RD | |
| 6 / 2 (B) = 13 = YE/BN | |
| 7 / 4 (A) = 11 = BK | |
| 7 / 2 (B) = 10 = WH/GY | |
| 8 / 4 (A) = 1 = VT | |
| 8 / 2 (B) = 18 = GY/BN | |
| 1-8 / 1 (+ 120 V) = 19 = BN | |
| 1-8 / 3 (0 V) = 6 = BU | |
| 1-8 / 5 (PE) = 12 = GN/YE |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.0272607xxeCl@ss 4.127260701eCl@ss 5.027260701eCl@ss 5.127261200eCl@ss 6.027261200eCl@ss 7.027440202eCl@ss 8.027440202eCl@ss 9.027440202
| Feature Name | Feature Value |
|---|---|
| Width (EF000008) | 26 mm |
| Height (EF000040) | 26 mm |
| Depth (EF000049) | 91 mm |
| Coating housing (EF001601) | Other |
| Position cable feed (EF008218) | Other |
| With cable screw gland (EF000735) | No |
| Mounting method of the cable gland (EF012210) | Other |
| With hinged lid (EF000117) | No |
| With distance piece (EF005072) | No |
| With sealing (EF005610) | Yes |
| Operating temperature (EF002393) | -20 °C |
| EMC-version (EF001062) | No |
| Degree of protection (IP), mounted (EF007466) | IP67 |
