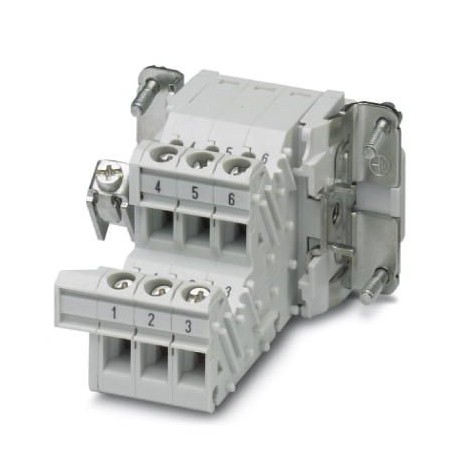

PHOENIX CONTACT HC-B 6-A-UT-PER-F HC-B 6-A-UT-PER-F 1648066 PHOENIX CONTACT Terminal adapter View larger
Images are for illustrative purposes only. Please refer to data sheet for details

HC-B 6-A-UT-PER-F 1648066 PHOENIX CONTACT Terminal adapter

HC-B 6-A-UT-PER-F

1648066

PHOENIX CONTACT

5 Pcs.

Terminal adapter HEAVYCON terminal adapter with female insert, B6 series, 6 poles, for the right side of the control cabinet, screw connection

Connectors > Contact insert for rectangular connectors
Industrial plug-in connectors/interfaces

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1648066
Packing unit5 pc
Minimum order quantity5 pc
Catalog pagePage 545 (C-2-2017)
GTIN4017918969691
Weight per Piece (excluding packing)83.780 g
Custom tariff number85366990
Country of originCN (China)

Dimensions

Drill hole distance, horizontal44 mm
Height74.2 mm

Ambient conditions

Ambient temperature (operation)-40 °C ... 125 °C

Electrical characteristics

Number of positions6
Connection in acc. with standardIEC / EN
Rated voltage (III/3)500 V
Rated surge voltage6 kV
Rated current16 A

Mechanical characteristics

TypeB6
Screw threadM3
Connection methodScrew connection
Tightening torque0.5 Nm ... 0.8 Nm
Stripping length of the individual wire12 mm
Conductor cross section0.5 mm² ... 2.5 mm²
Connection cross section AWG20 ... 14

General

NoteFor HEAVYCON-ADVANCE mounting flange and HEAVYCON panel mounting base of B6 type
Connectors may be operated only when there is no load/voltage.
Contact materialCopper alloy
Contact surface materialAg
Contact carrier materialPA
Standards/regulationsPA: Fire protection in rail vehicles - requirement sets R22 and R23 acc. to DIN EN 45545-2 (Risk level HL1 - HL2)
PA: Fire protection in rail vehicles - requirement set R24 acc. to DIN EN 45545-2 (Risk level HL1 - HL3)
Degree of pollution3
Overvoltage categoryIII
Flammability rating according to UL 94V0
Connection in acc. with standardIEC / EN
Assembly instructionsTo ensure correct use, installation in housing with IP54 protection or better is required
Installation instructionsConnectors may only be actuated when there is no load/voltage.

Standards and Regulations

Connection in acc. with standardCSA
Constructional and testing regulationsDIN EN 61984
DIN EN 60664
IEC 60352
Flammability rating according to UL 94V0

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 1648066 Connectors (EC000438)
Feature Name Feature Value
Contact type (EF001587) Bus
Number of poles (EF001391) 6
Material connector insert (EF007545) Other
Ambient temperature (EF002386) 125 °C
Operating temperature (EF002393) -40 °C
Rated voltage (EF000228) 500 V
Over voltage category (EF006785) III
With wire protection (EF000550) No
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.5 mm²
Connectable conductor cross section multi-wired (EF007343) 0.5 mm²
Material of contact surface (EF004020) Other
Material contact (EF007544) Other
Inflammability class of insulation material according to UL94 (EF002521) V0
With protective conductor (EF007468) Yes
Width (EF000008) 34 mm
Height (EF000040) 74.2 mm
Depth (EF000049) 51 mm
