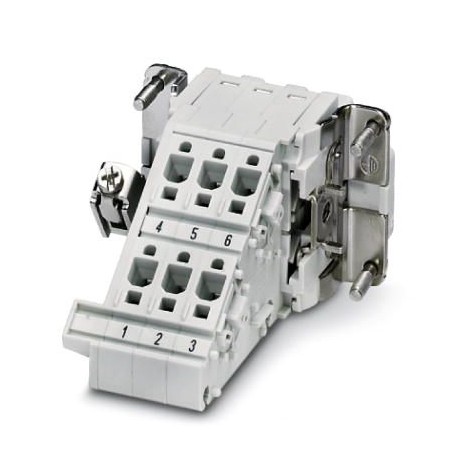

HC-B 6-A-DT-PER-F 1648377 PHOENIX CONTACT Terminal adapter
HC-B 6-A-DT-PER-F
1648377
PHOENIX CONTACT
5 Pcs.
Terminal adapter
HEAVYCON terminal adapter with female insert, B6 series, 6 poles, for the right side of the control cabinet, push-in connection
Connectors > Contact insert for rectangular connectors
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1648377 |
|---|---|
| Packing unit | 5 pc |
| Catalog page | Page 543 (C-2-2017) |
| GTIN | 4046356092098 |
| Weight per Piece (excluding packing) | 73.350 g |
| Custom tariff number | 85366990 |
| Country of origin | CN (China) |
Electrical characteristics
| Number of positions | 6 |
|---|---|
| Rated voltage (III/3) | 500 V |
| Rated surge voltage | 6 kV |
| Rated current | 16 A |
Mechanical characteristics
| Type | B6 |
|---|---|
| Connection method | Push-in connection |
| Stripping length of the individual wire | 10 mm (13 mm if ferrules are used) |
| Conductor cross section | 0.5 mm² ... 2.5 mm² |
| Connection cross section AWG | 22 ... 12 |
General
| Note | For HEAVYCON-ADVANCE mounting flange and HEAVYCON panel mounting base of B6 type |
|---|---|
| Connectors may be operated only when there is no load/voltage. | |
| Contact material | Copper alloy |
| Contact surface material | Ag |
| Contact carrier material | PA |
| Standards/regulations | PA: Fire protection in rail vehicles - requirement sets R22 and R23 acc. to DIN EN 45545-2 (Risk level HL1 - HL2) |
| PA: Fire protection in rail vehicles - requirement set R24 acc. to DIN EN 45545-2 (Risk level HL1 - HL3) | |
| Degree of pollution | 3 |
| Overvoltage category | III |
| Flammability rating according to UL 94 | V0 |
| Assembly instructions | To ensure correct use, installation in housing with IP54 protection or better is required |
| Installation instructions | Connectors may be plugged in only when there is no load/voltage. |
Standards and Regulations
| Connection in acc. with standard | CSA |
|---|---|
| Constructional and testing regulations | DIN EN 61984 |
| DIN EN 60664 | |
| IEC 60352 | |
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027140816eCl@ss 4.127140816eCl@ss 5.027143424eCl@ss 5.127261200eCl@ss 6.027261200eCl@ss 7.027440205eCl@ss 8.027440205eCl@ss 9.027440222
| Feature Name | Feature Value |
|---|---|
| Contact type (EF001587) | Bus |
| Number of poles (EF001391) | 6 |
| Material connector insert (EF007545) | Other |
| Ambient temperature (EF002386) | 125 °C |
| Operating temperature (EF002393) | -40 °C |
| Rated voltage (EF000228) | 500 V |
| Over voltage category (EF006785) | III |
| With wire protection (EF000550) | No |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 0.5 mm² |
| Connectable conductor cross section multi-wired (EF007343) | 0.5 mm² |
| Material of contact surface (EF004020) | Other |
| Material contact (EF007544) | Other |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| With protective conductor (EF007468) | Yes |
| Width (EF000008) | 34 mm |
| Height (EF000040) | 72.1 mm |
| Depth (EF000049) | 50.5 mm |
