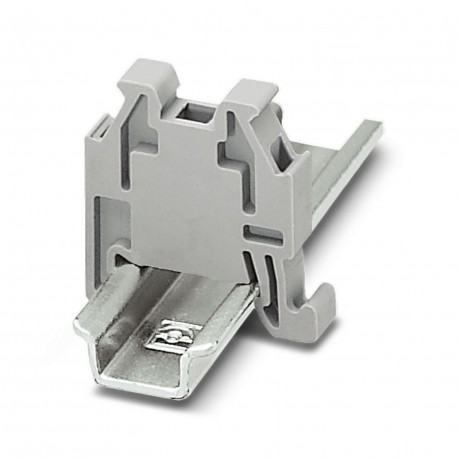

CLIPFIX 15 3022263 PHOENIX CONTACT End clamp
CLIPFIX 15
3022263
PHOENIX CONTACT
50 Pcs.
End clamp
Quick-mount end bracket for fitting onto NS 15 rail
Snap-on end bracket, to be snapped onto NS 15 DIN rail
Automation > End bracket for terminal block
CABINET add-on
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | End bracket |
| Data management status | |
| Article revision | 02 |
Dimensions
| Width | 5.2 mm |
| Height | 22 mm |
| Depth | 22.6 mm |
| Depth on NS 15 | 24 mm |
| Depth on NS 35/7,5 | 24 mm |
| Length | 22 mm |
Material specifications
| Color | gray (RAL 7042) |
| Material | PA |
| Flammability rating according to UL 94 | V2 |
| Relative insulation material temperature index (Elec., UL 746 B) | 125 °C |
Environmental and real-life conditions
| Ambient conditions | |
| Ambient temperature (operation) | -60 °C ... 105 °C (max. short-term operating temperature RTI Elec.) |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
Mounting
| Mounting type | NS 15 |
| Feature Name | Feature Value |
|---|---|
| Colour (EF000007) | Grey |
| Mounting method (EF000003) | DIN rail (top hat rail) 15 mm |
| Type of latching (EF002667) | Screwless |
| Material (EF002169) | Other |
| Material quality (EF001257) | Polyamide (PA) |
| Inflammability class of insulation material according to UL94 (EF002521) | V2 |
| Height (EF000040) | 22 mm |
| Depth (EF000049) | 22.6 mm |
