View larger
Images are for illustrative purposes only. Please refer to data sheet for details

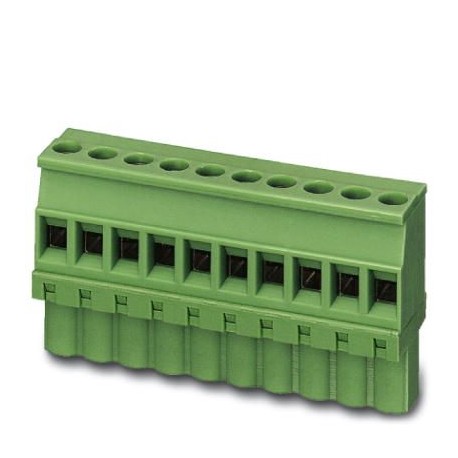

MVSTBW 2,5/10-ST-5,08 7035 4PA 1715551 PHOENIX CONTACT Printed-circuit board connector
MVSTBW 2,5/10-ST-5,08 7035 4PA
1715551
PHOENIX CONTACT
50 Pcs.
Printed-circuit board connector
Connector for printed circuit board, nominal section: 2.5 mm², color: bright gray, nominal current: 12 A, nominal voltage (III/2): 320 V, contact surface: Tin, contact type: Female, number of potentials: 4, number of rows: 1, number of poles: 10, number of connections: 4, family of articles: MVSTBW 2.5/.. -ST, pitch: 5.08 mm, connection type: Screw connection with traction capsule, conductor connection direction/printed circuit board: -90 °, clamping hook: - Clamping hook, plug-in system: COMBICON MSTB 2.5, locking: without, fixing type: without, packaging type: boxed
Cables > Cable connector
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General
| Range of articles | MVSTBW 2,5/..-ST |
|---|---|
| Number of positions | 10 |
| Connection method | Screw connection with tension sleeve |
| Insulating material group | I |
| Rated voltage (III/2) | 320 V |
| Nominal current IN | 12 A |
| Nominal cross section | 2.5 mm² |
| Flammability rating according to UL 94 | V0 |
| Screw thread | M3 |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
