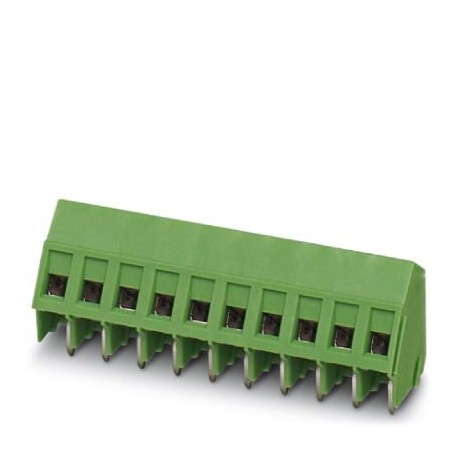

SMKDSP 1,5/ 5-5,08 BD:RA1-R2C 1710993 PHOENIX CONTACT Terminal for printed circuit board
SMKDSP 1,5/ 5-5,08 BD:RA1-R2C
1710993
PHOENIX CONTACT
250 Pcs.
Terminal for printed circuit board
Printed circuit board terminal block, nominal current: 17.5 A, nominal voltage (III/2): 400 V, nominal cross-section: 1.5 mm², number of potentials: 5, number of rows: 1, number of poles per row: 5, article family: SMKDSP 1.5, pitch: 5.08 mm, connection type: Screw connection with traction capsule, screw clamping method: L Longitudinal slot, mounting: Wave soldering, conductor/printed circuit board connection direction: 55 °, color: green, Pin arrangement: Linear pin arrangement, Pin length [P]: 3.5 mm, number of solder pins per potential: 1, packaging type: boxed
Connectors > Printed circuit board terminal
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Terminal for printed circuit board, rated current: 17,5 A, rated voltage: 400 V, pitch: 5,08 mm, number of poles: 5, type of connection: Connection by screw with capsule-traction, assembly: Soldering by wave direction for connection conductor/pcb: 55 °, color: green
Data commercial
| Key order | One million seven hundred ten thousand nine hundred ninety three |
|---|---|
| Packing unit | 250 pcs |
| Key selling | AAABEA - |
| Minimum order quantity | 250 pcs |
| EAN | Four trillion fifty five billion six hundred twenty six million two hundred forty eight thousand eight hundred twenty |
| Unit weight (excluding packaging) | 6,030 g |
| Tariff number tariff | Eighty five million three hundred sixty nine thousand ten |
| Country of origin | CN (China) |
Dimensions
| Length [ l ] | 13,4 mm |
|---|---|
| Step | 5,08 mm |
| Average | 5,08 mm |
| Height of construction | 16 mm |
| Length of pin [P] | 3.5 mm |
| Diameter hole | 1.3 mm |
Overview
| Family of articles | SMKDSP 1,5 |
|---|---|
| Group insulating material | I |
| Tension and sizing (III/2) | 400 V |
| Nominal current IN | 17,5 To |
| Nominal cross section | 1.5 mm2 |
| Surface pin welding | |
| Class of flammability according to UL 94 | V0 |
| Number of poles | Five |
| Screw thread | M3 |
Standards and specifications
| Class of flammability according to UL 94 | V0 |
|---|
Environmental Product Compliance
| REACh SVHC | |
|---|---|
| Lead 7439-92-1 | |
| China RoHS | Space of time for the intended use (FEUP): 50 years |
| You will find information about hazardous substances in the manufacturer's declaration in the "Downloads"tab |
Ratings
eCl@ss
| eCl@ss 5.1 | Twenty seven million two hundred sixty one thousand one hundred |
|---|---|
| eCl@ss 6.0 | Twenty seven million two hundred sixty one thousand one hundred |
| eCl@ss 7.0 | Twenty seven million four hundred forty thousand four hundred one |
| eCl@ss 8.0 | Twenty seven million four hundred forty thousand four hundred one |
| eCl@ss 9.0 | Twenty seven million four hundred forty thousand four hundred one |
ETIM
| ETIM 5.0 | EC002643 |
|---|---|
| ETIM 6.0 | EC002643 |
| ETIM 7.0 | EC002643 |
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 18.8 mm |
| Number of electrical connections (EF008252) | 5 |
| Number of levels (EF002659) | 1 |
| Modular spacing connections (EF006827) | 5.08 mm |
| Rated current In (EF008250) | 17.5 A |
| Rated voltage (EF000228) | 400 V |
| Rated surge voltage (EF002993) | 4 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 2 |
| Connection type conductor (EF006821) | Screw connection |
| Connectable conductor cross section solid-core (EF007337) | 0.14 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve (EF007339) | 0.25 mm² |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 0.14 mm² |
| Connectable conductor cross section multi-wired (EF007343) | 0.14 mm² |
| Connection type PCB (EF006822) | Soldering connection |
| Material connection surface (EF006826) | Tin |
| Diameter connection pin (EF006823) | 1.3 mm |
| Length pin (EF006825) | 3.5 mm |
| Material insulation body (EF007543) | Other |
| Housing colour (EF000136) | Green |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Operating temperature (EF002393) | -40 °C |
| Type of PCB fastening (EF008226) | Connecting contact |
| Type of fastening (EF002442) | Solder |
| Type of banding (EF007011) | Carton (for SMD) |
