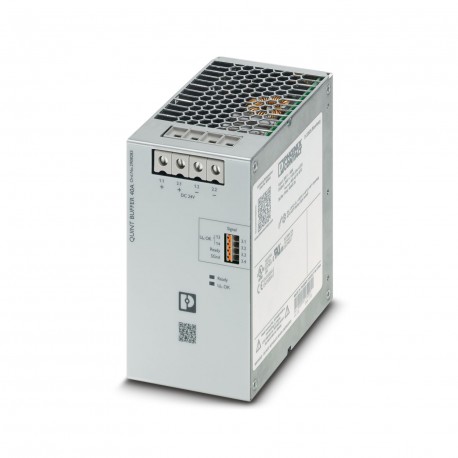

PHOENIX CONTACT QUINT4-BUFFER/24DC/40 QUINT4-BUFFER/24DC/40 2908283 PHOENIX CONTACT Buffer module View larger
Images are for illustrative purposes only. Please refer to data sheet for details

QUINT4-BUFFER/24DC/40 2908283 PHOENIX CONTACT Buffer module

QUINT4-BUFFER/24DC/40

2908283

PHOENIX CONTACT

1 Pcs.

Buffer module QUINT buffer module with maintenance-free energy storage on a capacitor for rail mounting, input: 24 V DC, output: 24 V DC/40 A, incl. universal adapter for mounted UTA 107 rail. QUINT buffer module with maintenance-free energy storage in capacitor for DIN rail mounting, input: 24 V DC, output: 24 V DC/40 A, including mounted adapter for UTA 107 universal DIN rail.

Automation > Accessories/spare parts for UPS
Power Supplies (PS)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2908283
Packing unit1 pc
Catalog pagePage 295 (C-4-2017)
GTIN4055626309200
Weight per Piece (excluding packing)1,328.000 g
Custom tariff number85322900
Country of originCN (China)

Dimensions

Width72 mm
Height130 mm
Depth125 mm

Ambient conditions

Degree of protectionIP20
Ambient temperature (operation)-25 °C ... 70 °C (> 40 °C Derating: 0.56 %/K / > 60 °C Derating: 2.5 %/K)
Ambient temperature (start-up type tested)-40 °C
Ambient temperature (storage/transport)-40 °C ... 70 °C
Max. permissible relative humidity (operation)≤ 95 %
Climatic class3K3 (in acc. with EN 60721)
Degree of pollution2
Installation height≤ 4000 m

Input data

Input voltage24 V DC (SELV)
Input voltage range22.5 V DC ... 30 V DC
Current consumption (maximum)46 A (max.)
Current consumption (idle)0.2 A (No-load)
Current consumption (charging process)0.8 A (charging process)
Fixed connect threshold< 22 V DC

Output data

Nominal output voltage24 V DC (depending on the input voltage)
Nominal output current (IN)40 A
Static Boost (IStat.Boost)45 A
Connection in parallelno
Connection in seriesNo
Power loss nominal load max.< 9 W

General

IQ technologyno
Net weight1.2 kg
Memory mediumElectrolytic capacitor
Efficiency> 98 % (with charged energy storage device)
Protection classSpecial application (SELV input voltage, hazardous voltages are generated in the device).
Degree of protectionIP20
MTBF (IEC 61709, SN 29500)2813895 h (40 °C)
Mounting positionhorizontal DIN rail NS 35, EN 60715
Assembly instructionsalignable: horizontally 0 mm, vertically 50 mm

Connection data, input

Connection methodScrew connection
Conductor cross section solid min.0.5 mm²
Conductor cross section solid max.16 mm²
Conductor cross section flexible min.0.5 mm²
Conductor cross section flexible max.16 mm²
Conductor cross section AWG min.10
Conductor cross section AWG max.6
Stripping length10 mm

Connection data, output

Connection methodScrew connection
Conductor cross section solid min.0.5 mm²
Conductor cross section solid max.16 mm²
Conductor cross section flexible min.0.5 mm²
Conductor cross section flexible max.16 mm²
Conductor cross section AWG min.10
Conductor cross section AWG max.6
Stripping length10 mm

Signaling

Signalization designationUInOK
Output nameElectronic relay (photorelay)
Output descriptionfloating 13/14
Output voltage30 V DC
Continuous load current200 mA
Status displayLED
Conductor cross section solid min.0.2 mm²
Conductor cross section solid max.1.5 mm²
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.1.5 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.16
Signalization designationReady
Output nameTransistor output, active
Output voltage24 V (UN- 2 V (typical))
Continuous load current20 mA
Status displayLED
Signalization designationReference potential for Ready

Standards and Regulations

Electromagnetic compatibilityConformance with EMC Directive 2014/30/EU
Standards/regulationsEN 61000-4-2
Contact discharge4 kV (Test Level 2)
Standards/regulationsEN 61000-4-3
Frequency range80 MHz ... 1 GHz
Test field strength10 V/m
Standards/regulationsEN 61000-4-4
CommentsCriterion B
Standards/regulationsEN 61000-4-6
Frequency range0.15 MHz ... 80 MHz
Voltage10 V
Low Voltage DirectiveConformance with Low Voltage Directive 2014/35/EC
Standard - Electrical safetyIEC 60950-1/VDE 0805 (SELV)
UL approvalsUL Listed UL 508
UL/C-UL Recognized UL 60950-1
Overvoltage category (EN 60950-1)I

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 25;
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2908283 Data networking products (EC002850)
Feature Name Feature Value
Type of accessory/spare part (EF000215) Other
Accessory (EF013236) Yes
Spare part (EF013237) No
Width (EF000008) 72 mm
Height (EF000040) 131.05 mm
Depth (EF000049) 132.219796 mm
