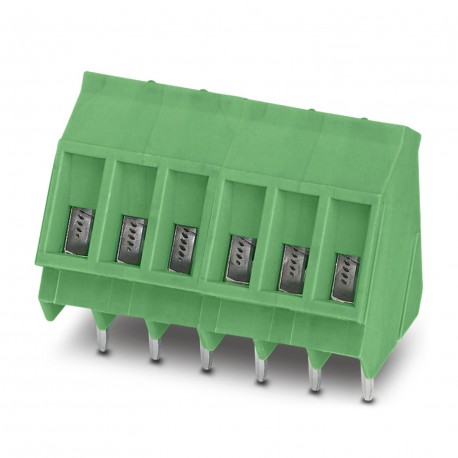

PHOENIX CONTACT SMKDS 3/15-5,08 SMKDS 3/15-5,08 1809607 PHOENIX CONTACT PCB terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SMKDS 3/15-5,08 1809607 PHOENIX CONTACT PCB terminal block

SMKDS 3/15-5,08

1809607

PHOENIX CONTACT

50 Pcs.

PCB terminal block Terminal block for printed circuit board, nominal current: 24 A, nominal voltage (III/2): 400 V, nominal cross-section: 2.5 mm², number of potentials: 15, number of rows: 1, number of poles per row: 15, article family: SMKDS 3, pitch: 5.08 mm, connection type: Screw connection with traction capsule, screw clamping method: L Longitudinal slot, mounting: Wave soldering, conductor/printed circuit board connection direction: 55 °, color: green, Pin arrangement: Linear pin arrangement, Pin length [P]: 4.5 mm, number of solder pins per potential: 1, packaging type: boxed PCB terminal, rated current: 24 A, rated voltage (III/2): 400 V, nominal cross-section: 2.5 mm2, number of potentials: 15, number of rows: 1, number of poles per row: 15, article family: SMKDS 3, pitch: 5.08 mm, connection type: screw connection with pull sleeve, screw attack shape: L longitudinal slot, mounting: wave soldering, connection direction conductor/board: 55 °, color: green, pin layout: linear pinning, pin length [P]: 4.5 mm, number of solder pins per potential: 1, Packing type: packed in carton

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1809607
Packing unit50 pc
GTIN4046356727105
Weight per Piece (excluding packing)28.000 g
Custom tariff number85369010
Country of originDE (Germany)

Dimensions

Length [ l ]16 mm
Pitch5.08 mm
Dimension a71.12 mm
Width [ w ]76.2 mm
Height18 mm
Height [ h ]22.5 mm
Solder pin [P]4.5 mm
Hole diameter1.3 mm

General

Range of articlesSMKDS 3
Rated surge voltage (III/3)4 kV
Rated surge voltage (III/2)4 kV
Rated surge voltage (II/2)4 kV
Rated voltage (III/3)250 V
Rated voltage (III/2)400 V
Rated voltage (II/2)630 V
Connection in acc. with standardEN-VDE
Nominal current IN24 A
Nominal cross section2.5 mm²
Solder pin surface
Internal cylindrical gageA3
Stripping length8 mm
Number of positions15
Screw threadM3
Tightening torque, min0.5 Nm
Tightening torque max0.6 Nm

Connection data

Conductor cross section AWG min.24
Conductor cross section AWG max.12
2 conductors with same cross section, solid min.0.2 mm²
2 conductors with same cross section, solid max.1.5 mm²
2 conductors with same cross section, stranded min.0.2 mm²
2 conductors with same cross section, stranded max.1.5 mm²
2 conductors with same cross section, stranded, ferrules without plastic sleeve, min.0.25 mm²
2 conductors with same cross section, stranded, ferrules without plastic sleeve, max.0.75 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min.0.5 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max.1.5 mm²

Standards and Regulations

Connection in acc. with standardEN-VDE
CSA

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
