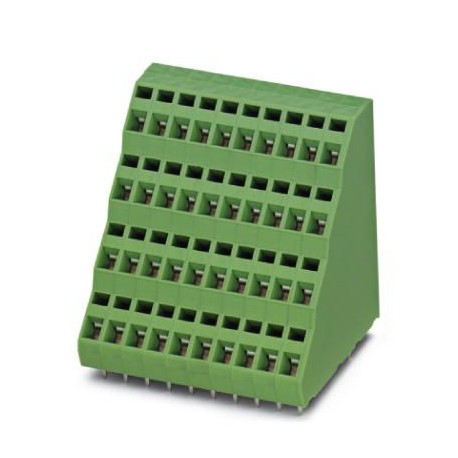

PHOENIX CONTACT ZFK4DSA 1,5-5,08-24 BD:-12B Q ZFK4DSA 1,5-5,08-24 BD:-12B Q 1711278 PHOENIX CONTACT Single PCB terminal block

View larger

Images are for illustrative purposes only. Please refer to data sheet for details

ZFK4DSA 1,5-5,08-24 BD:-12B Q 1711278 PHOENIX CONTACT Single PCB terminal block

Name: ZFK4DSA 1,5-5,08-24 BD:-12B Q 1711278 PHOENIX CONTACT Single PCB terminal block
Brand: PHOENIX CONTACT
SKU: 1711278

Reference: ZFK4DSA 1,5-5,08-24 BD:-12B Q

Code: 1711278

Manufacturer: PHOENIX CONTACT

Units per package: 10 Pcs.

Description:

Single PCB terminal block Terminal block for printed circuit board, nominal current: 12 A, dimensioning voltage (III/2): 400 V, nominal cross-section: 1.5 mm², number of potentials: 96, number of rows: 4, number of poles per row: 24, article family: ZFK4DS(A) 1.5, pitch: 5.08 mm, connection type: Spring connection, mounting: Wave soldering, conductor connection direction/printed circuit board: 45 °, color: green, Pin arrangement: Linear pin arrangement, Pin length [P]: 3.4 mm, number of solder pins per potential: 1, packaging type: boxed. The item can be aligned with different numbers of poles!

Categories:
Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Guarantee, repair and return.

More info

▲

Key Commercial Data

Orderkey	1711278
Packing unit	1
GTIN	4055626230870
Custom tariff number	85369010

Dimensions

Length [ l ]	42.4 mm
Pitch	5.08 mm
Height	48 mm
Solder pin [P]	3.4 mm
Hole diameter	1.3 mm

General

Range of articles	ZFK4DS(A) 1,5
Insulating material group	I
Rated voltage (III/2)	400 V
Nominal current I_N	12 A
Nominal cross section	1.5 mm²
Solder pin surface
Flammability rating according to UL 94	V0
Number of positions	24
