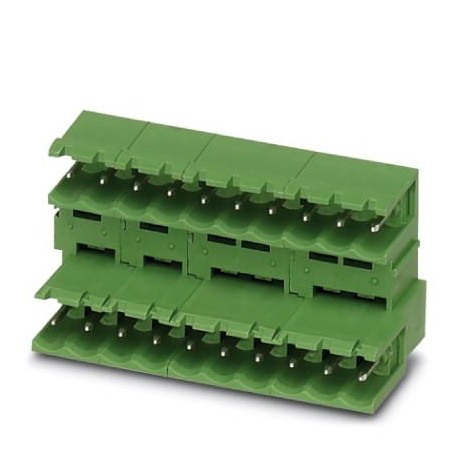

MDSTB 2,5/ 5-G-5,08 GY7035 1806532 PHOENIX CONTACT Feed-through header

MDSTB 2,5/ 5-G-5,08 GY7035

1806532

PHOENIX CONTACT

50 Pcs.

Feed-through header Printed circuit board base housing, nominal section: 2.5 mm², color: bright gray, nominal current: 10 A, nominal voltage (III/2): 320 V, contact surface: Tin, contact type: Male, number of potentials: 10, number of rows: 2, number of poles: 5, number of connections: 10, family of articles: MDSTB 2.5/.. -G, pitch: 5.08 mm, mounting: Wave soldering, pin arrangement: Linear pin arrangement, pin length [P]: 3.2 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2.5, Plug-in face orientation: Standard, locking: without, fixing type: without, packaging type: boxed

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1806532
Packing unit1
GTIN4046356692564
Custom tariff number85366930

Dimensions

Length [ l ]22.1 mm
Width27.94 mm
Pitch5.08 mm
Dimension a20.32 mm
Width [ w ]27.94 mm
Height [ h ]27.2 mm
Height24 mm
Length of the solder pin3.2 mm
Pin dimensions1 x 1 mm
Length22.1 mm

General

Range of articlesMDSTB 2,5/..-G
Rated voltage (III/3)250 V
Connection in acc. with standardEN-VDE
Nominal current IN10 A
Colorlight gray
Number of positions5

Standards and Regulations

Connection in acc. with standardEN-VDE
CSA

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 1806532 Connectors (EC002637)
Feature Name Feature Value
Connector model (EF007495) Fixed connector
Contact type (EF001587) Pin
Number of poles (EF001391) 10
Number of plug-in contact rows (EF006935) 2
Modular spacing contacts (EF007326) 5.08 mm
Modular spacing connections (EF006827) 5.08 mm
Rated current In (EF008250) 10 A
Rated voltage (EF000228) 320 V
Rated surge voltage (EF002993) 4 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Material of contact surface (EF004020) Tin
Type of electric connection (EF003961) Other
Diameter connection pin (EF006823) 1.4 mm
Length pin (EF006825) 3.23 mm
Material insulation body (EF007543) Other
Housing colour (EF000136) Grey
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of fastening (EF002442) Other
Type of banding (EF007011) Carton (for SMD)

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
